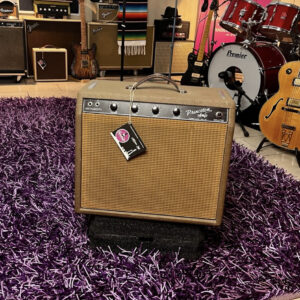

1962 Fender Princeton 6G2 Brown tube-amp

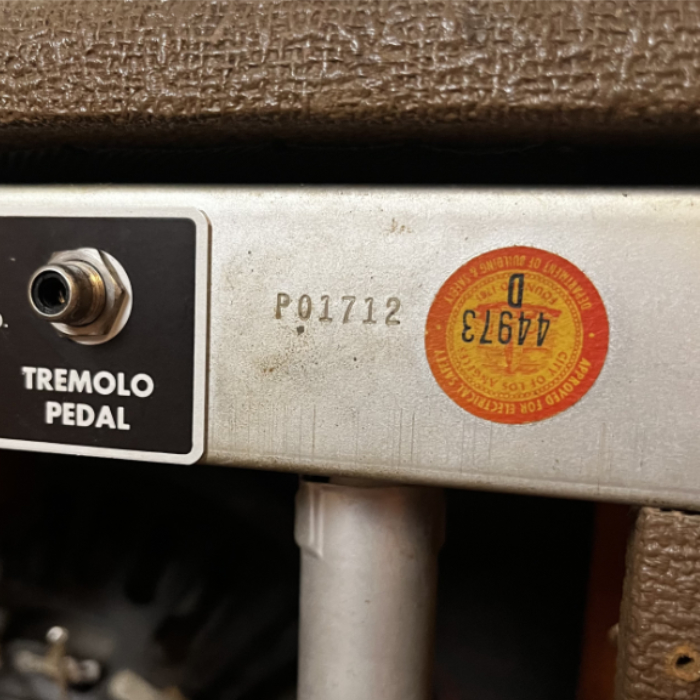

Serial number: P 01712/ 110V

Cosmetic condition: VERY GOOD

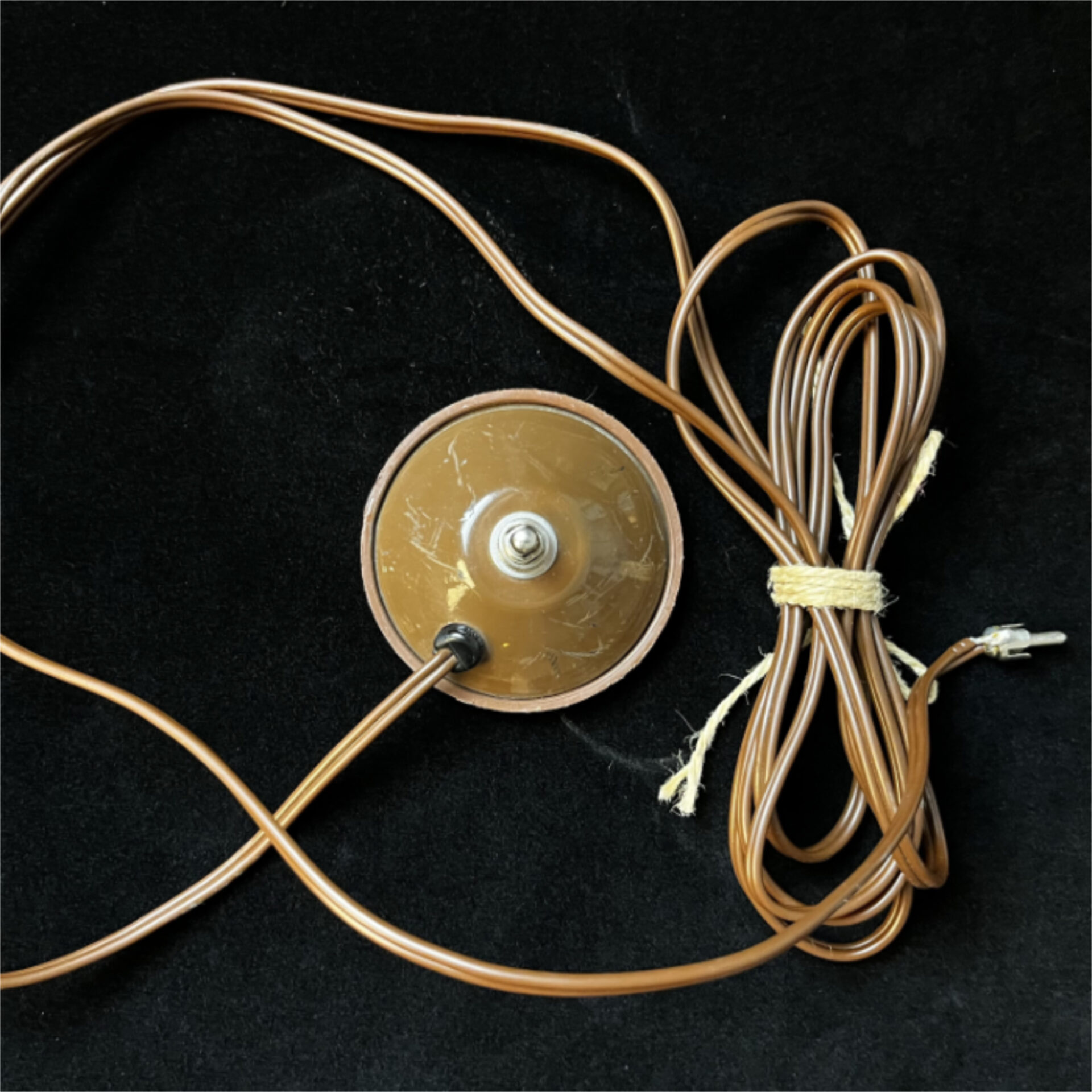

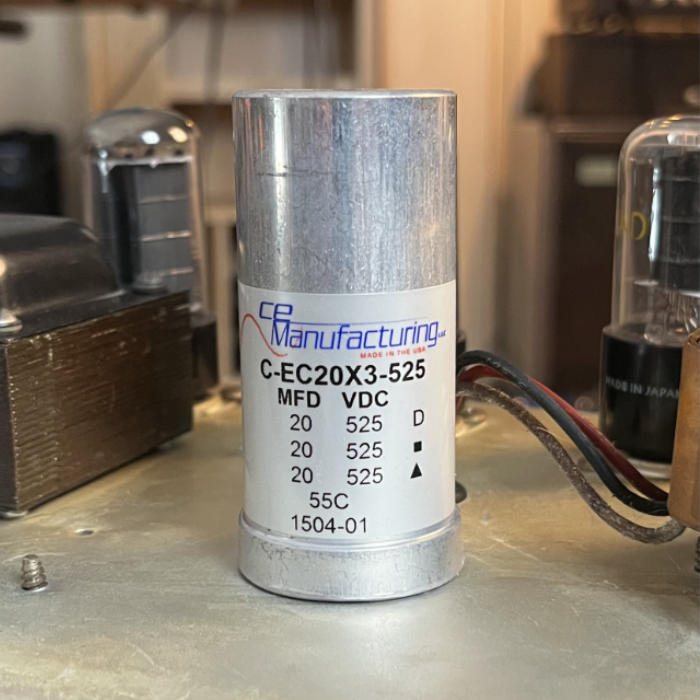

Upgrades/modifications: 1970s Fender label Oxford 10′ speaker, the FS is correct it is not a new one but it could be an old reproduction (see pic), a few capacitors, a new Can Cap “CE Manufacturing C-EC20x3-525A”, a new AC power cord w/ plug (see pics).

Serviced: YES

Description:

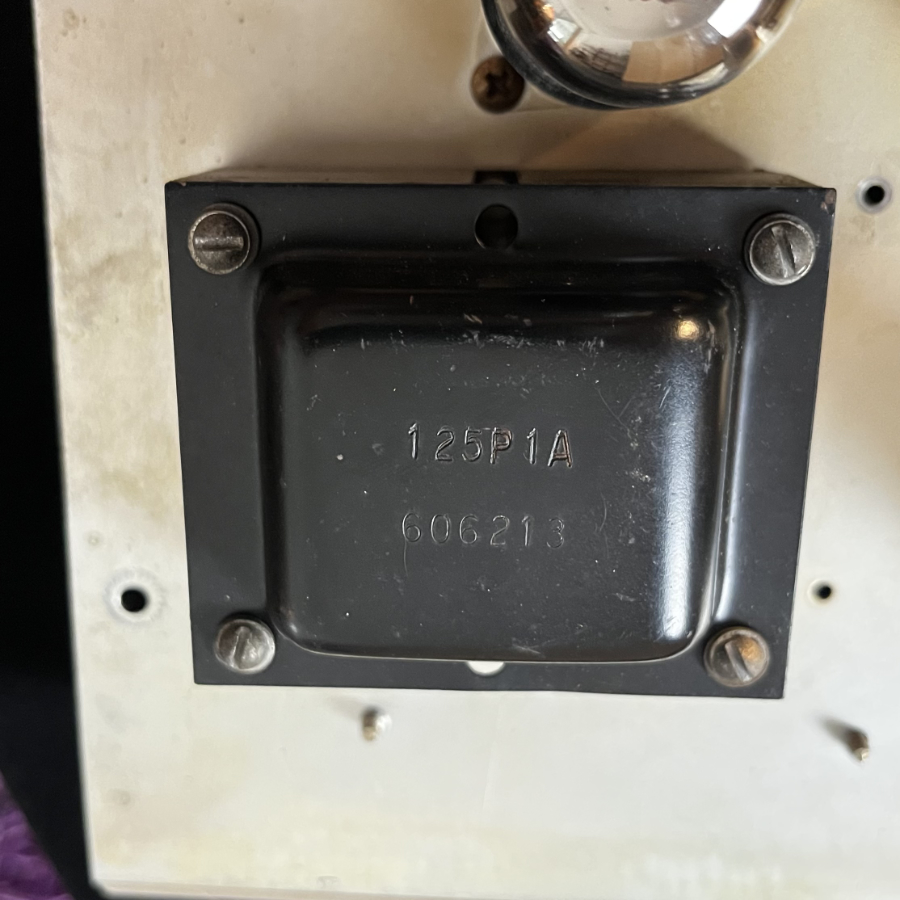

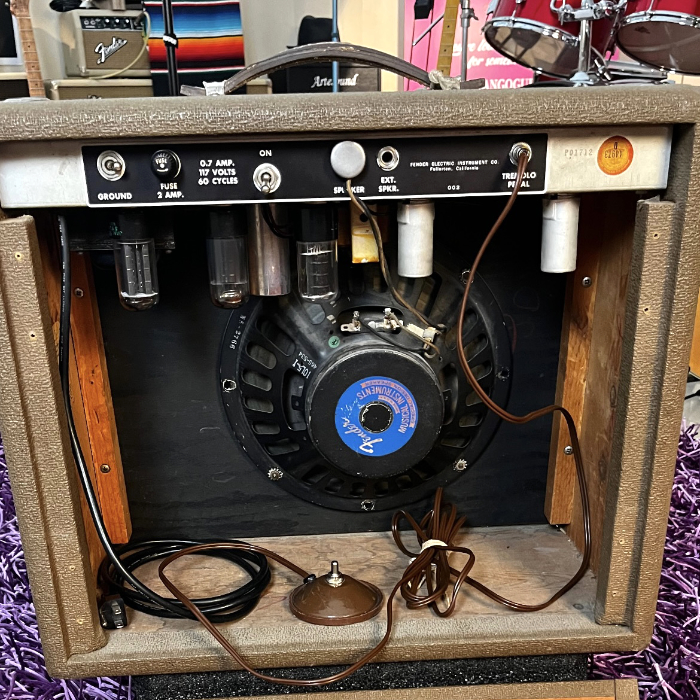

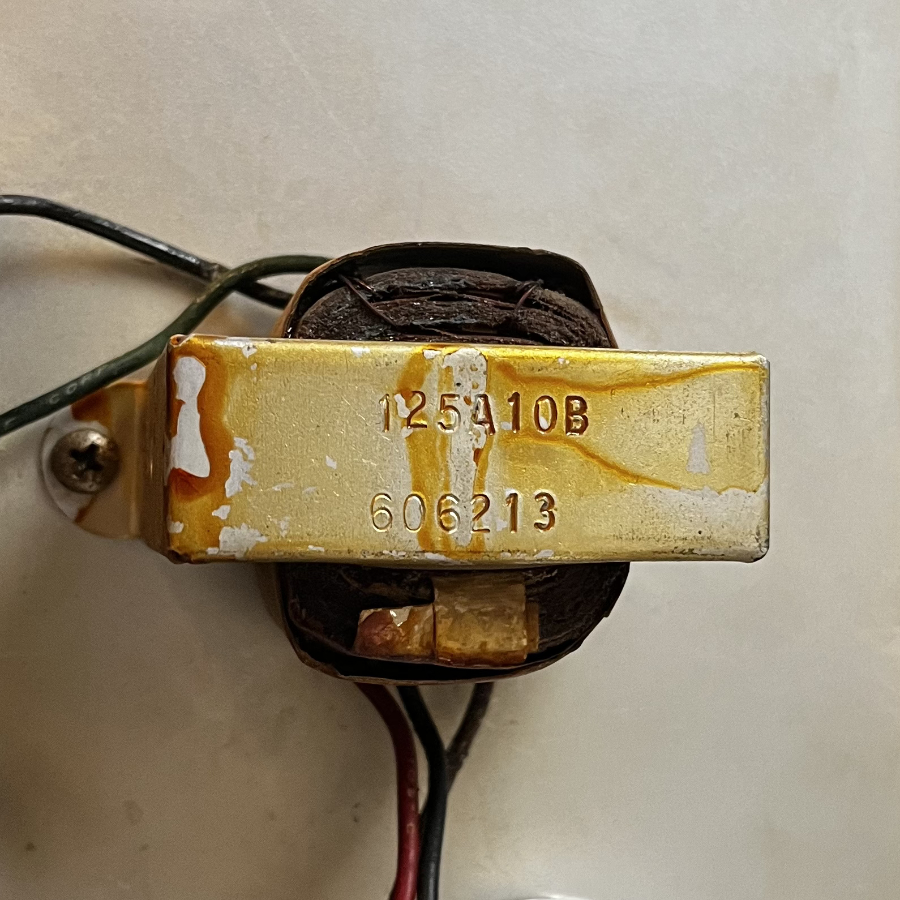

Very good condition and mostly original, all main components, original circuit, the output transformer and also the power-transformer are original. Speaker is a 1970s Fender label Oxford 10″, grill cloth and tolex are all original. Recently serviced, a new power chord was added and just a few caps and resistors have been changed for service reasons. The brown covering is in very good shape, the original handle was replaced with a repro leather handle. This amp when used solely with a guitar is pure and instantly achieves what is known worldwide as the “Fender Brown era sound”.

1962 Fender Princeton 6G2 – Technical Description

The 1962 Fender Princeton 6G2 is a handwired, all-tube guitar amplifier produced during Fender’s “Brownface” era (1961–1963). It utilizes the 6G2 circuit, featuring a fixed-bias push-pull output stage, cathodyne (split-load) phase inverter, and bias-modulated tremolo, delivering approximately 12 watts RMS into a single 10-inch speaker. The design provides exceptional touch sensitivity, early power tube breakup, and a dynamic response that bridges the tonal characteristics of Fender’s late tweed and early blackface amplifiers.

This is a US-specification 117V amplifier, so a suitable step-down transformer will be required when used with European mains voltage.

Technical Specifications

  • Circuit: Fender 6G2 (Brownface)
  • Production Year: 1962

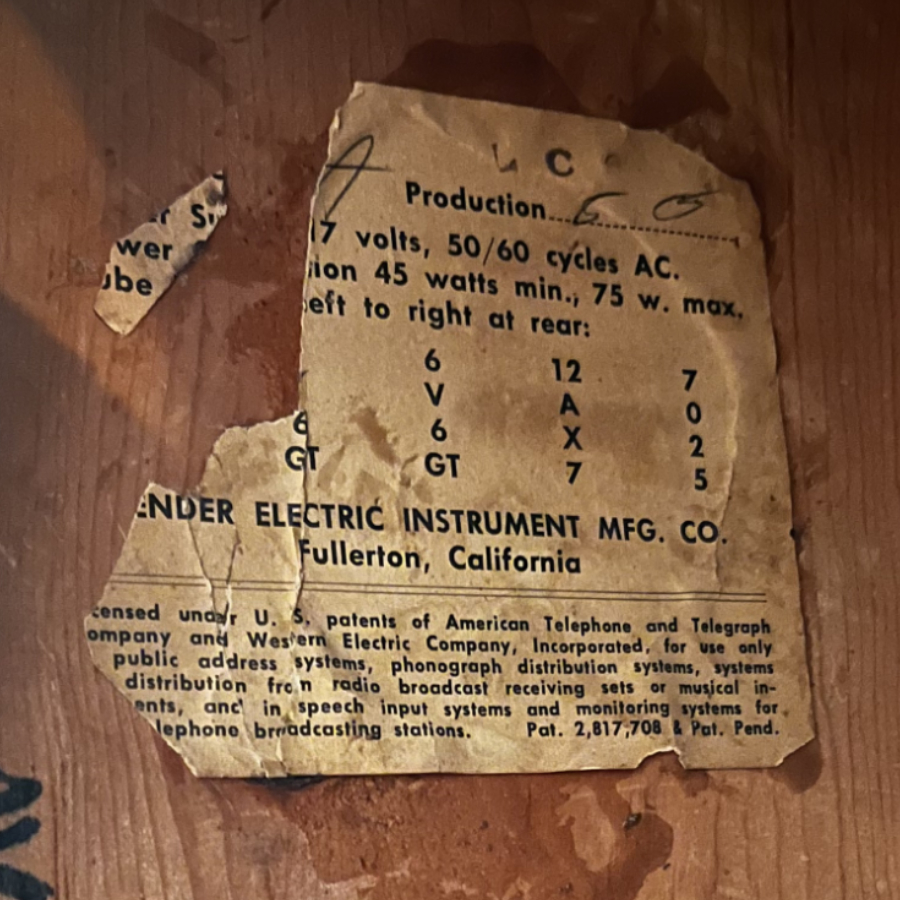

  • TubeChart Date: LC = March 1962
  • Output Power: Approximately 12 Watts RMS
  • Output Stage: Push-pull, fixed-bias Class AB
  • Original circuit

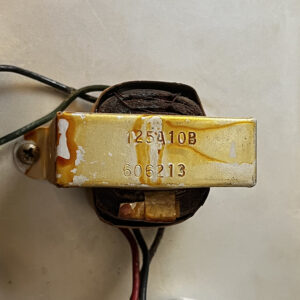

  • Original transformers

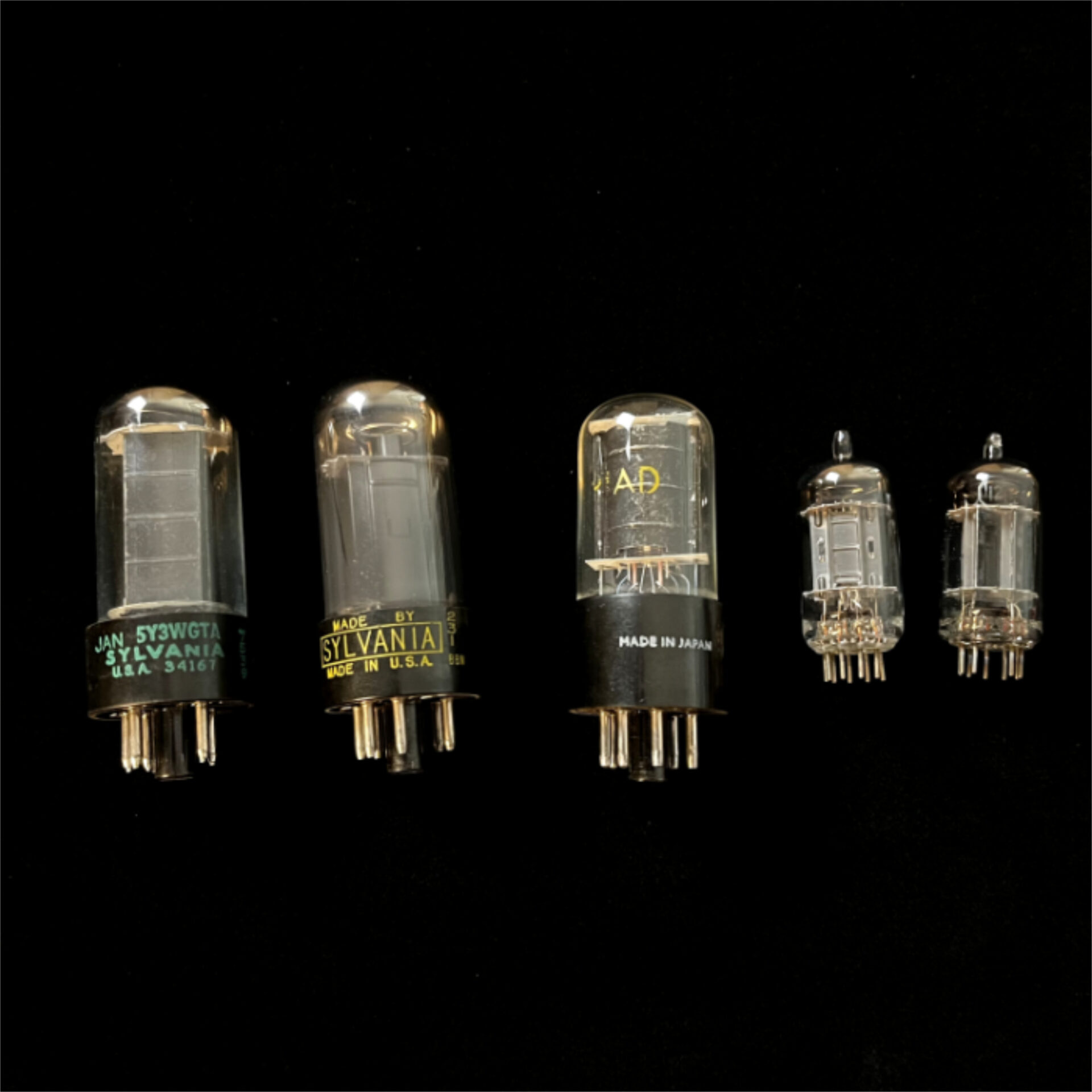

  • Power Tubes: 2 × 6V6GT
  • Preamp Tubes: 2 × 12AX7
  • Rectifier: 1 × 5Y3GT tube rectifier
  • Phase Inverter: Cathodyne (split-load)

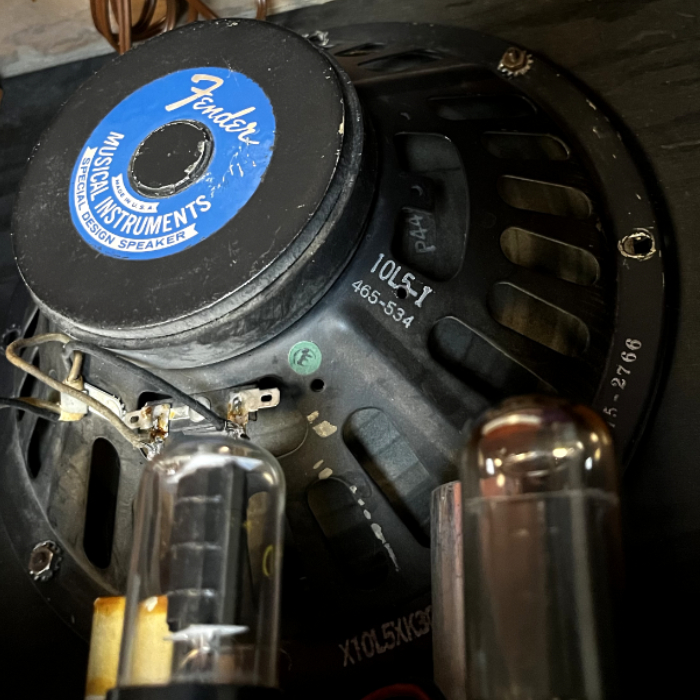

  • Speaker: 1970s Fender label Oxford 10″ speaker
  • Controls: Volume, Tone, Tremolo Speed, Tremolo Intensit
  • Effects: Tube-driven bias-modulated tremolo
  • Inputs: Two high-impedance instrument inputs

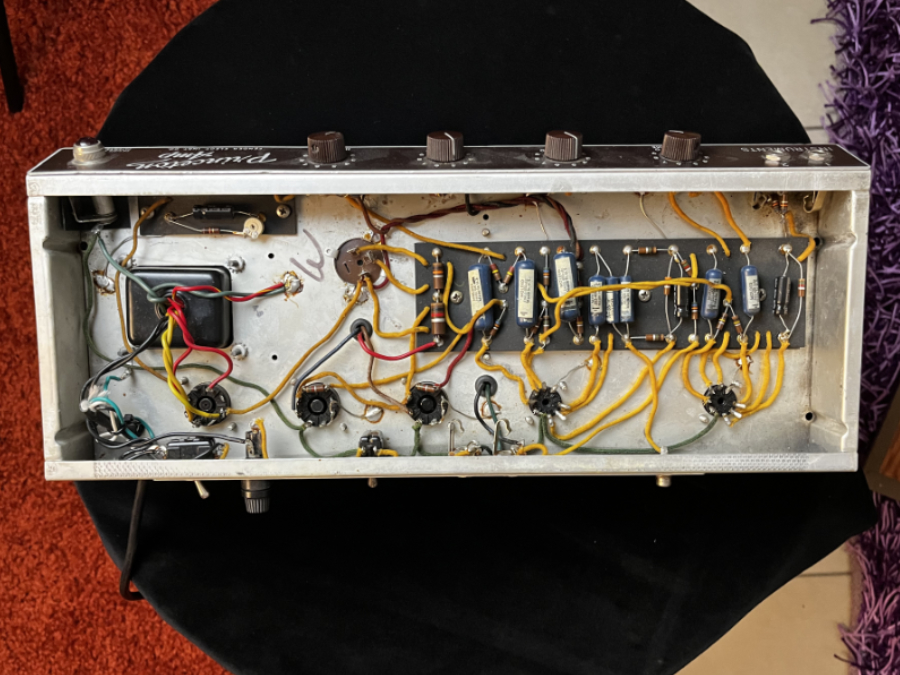

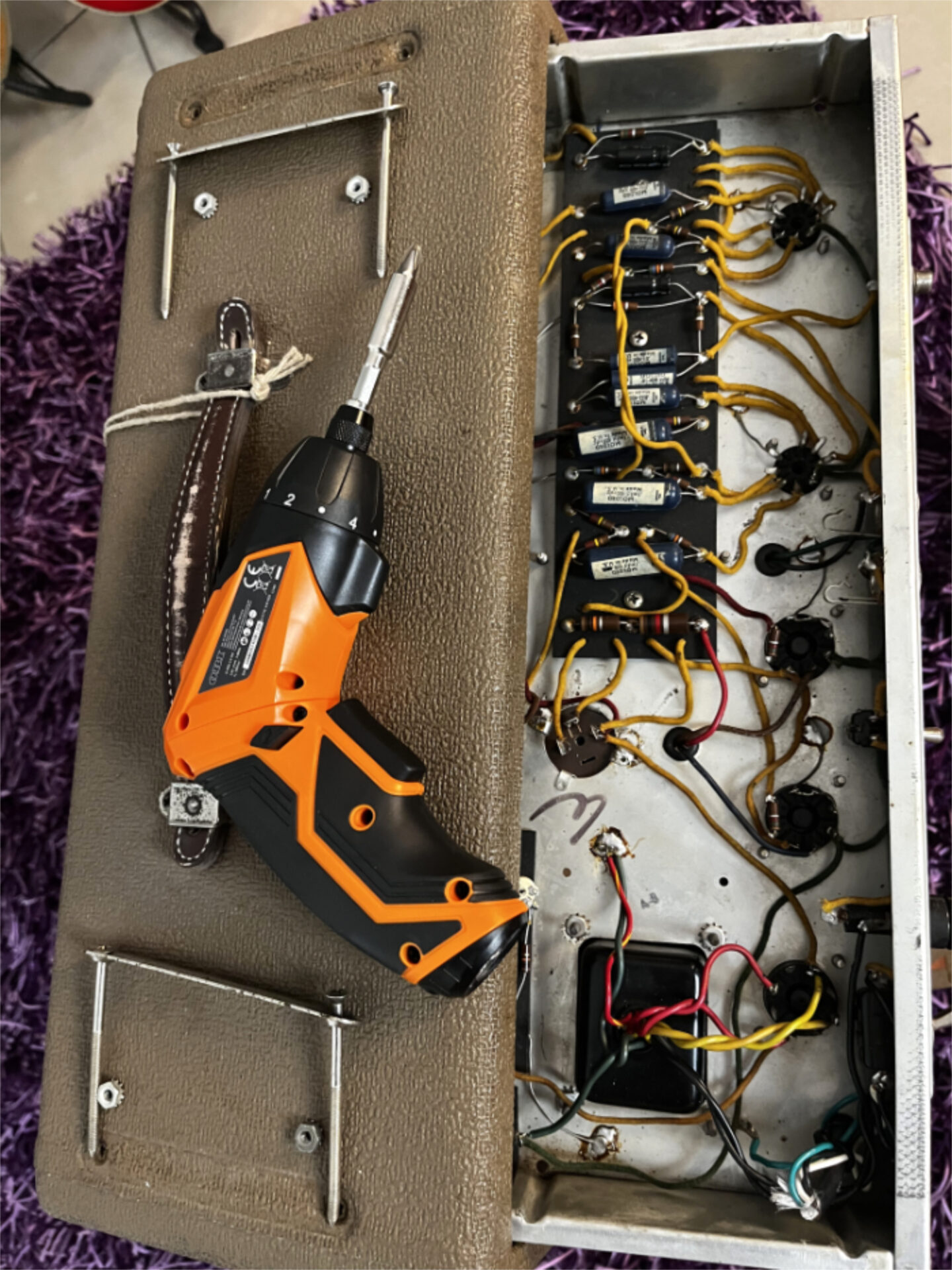

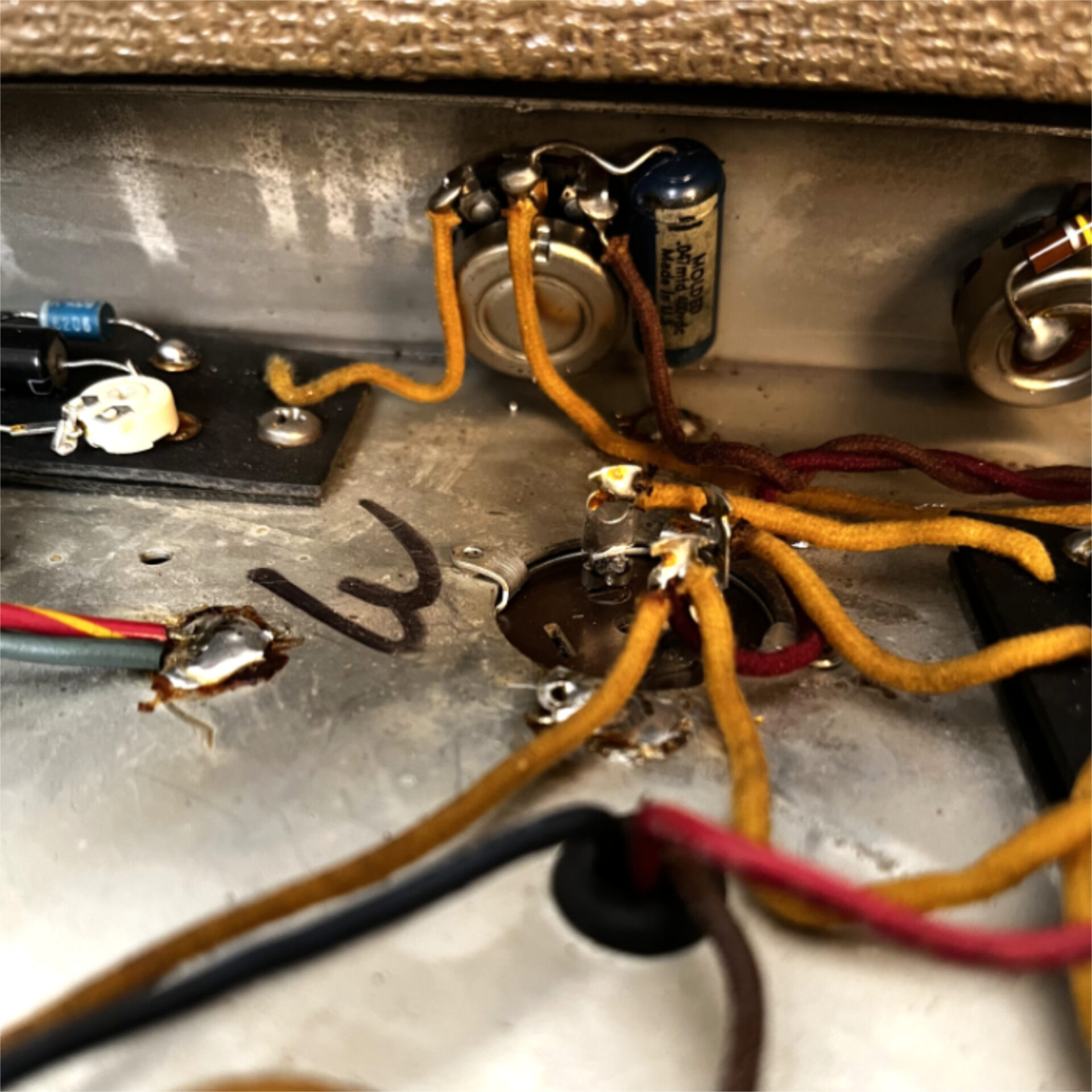

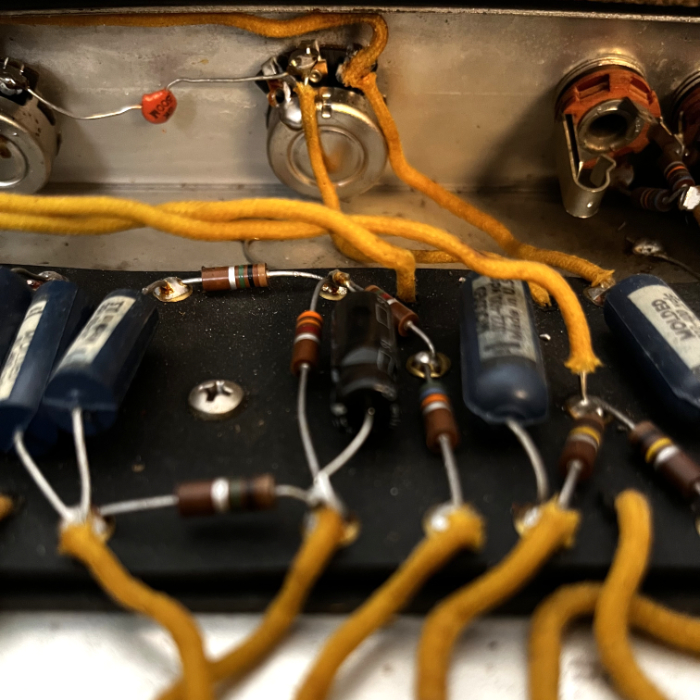

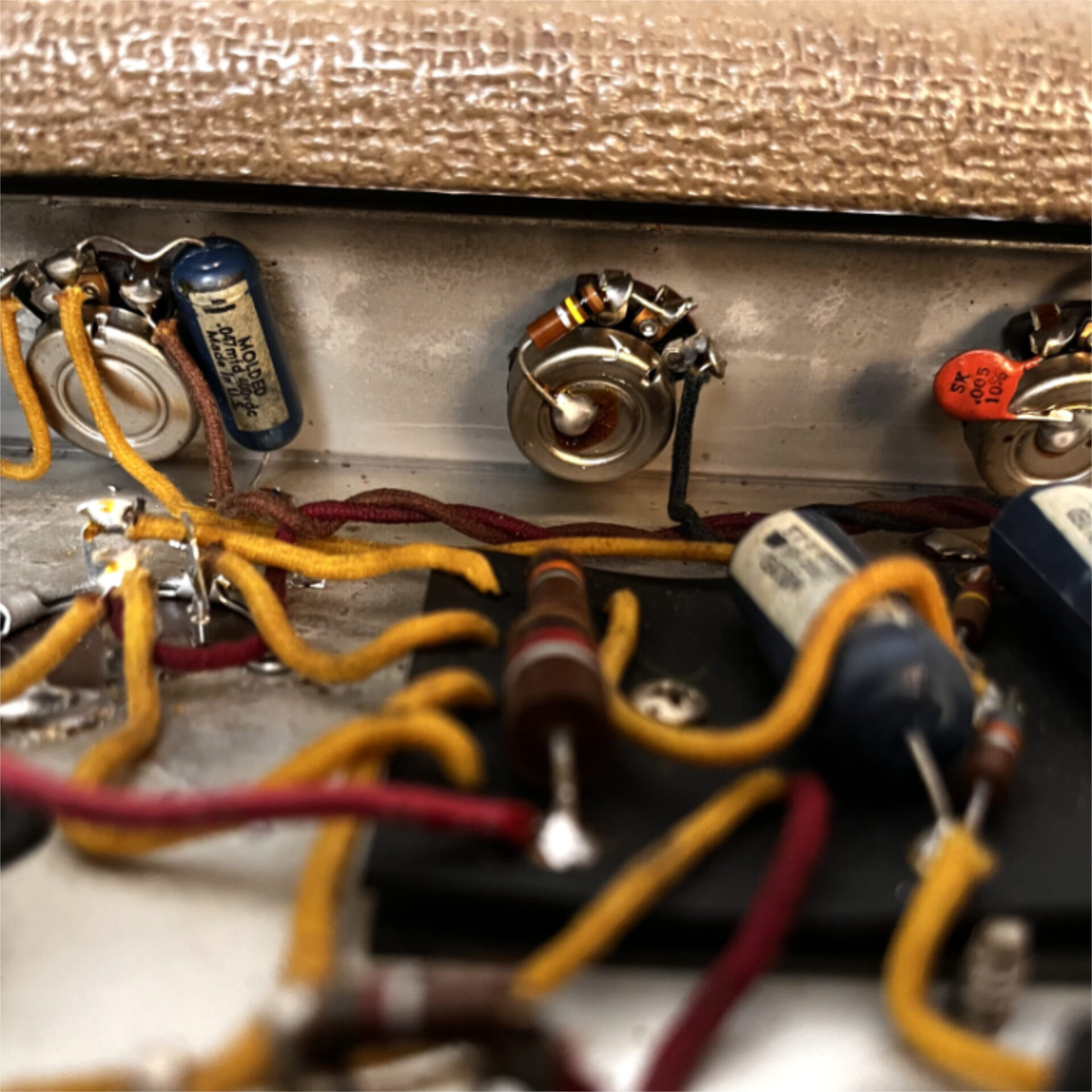

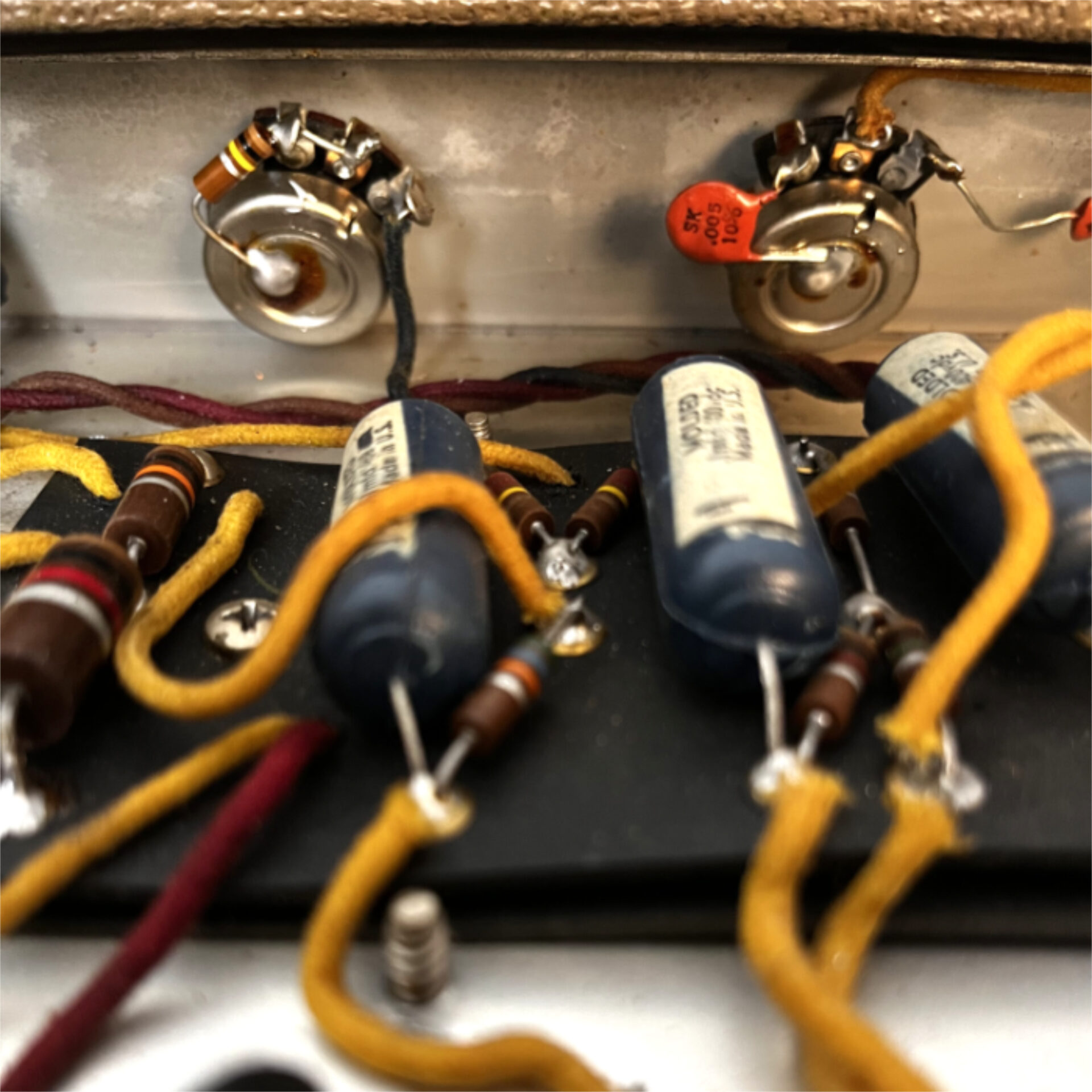

  • Construction: Handwired eyelet board with point-to-point wiring
  • Panel: Black front panel
  • Cabinet: Finger-jointed solid pine with floating baffle
  • Covering: Brown textured Tolex with wheat grille cloth
  • Weight: Approximately 22 lb (10 kg)

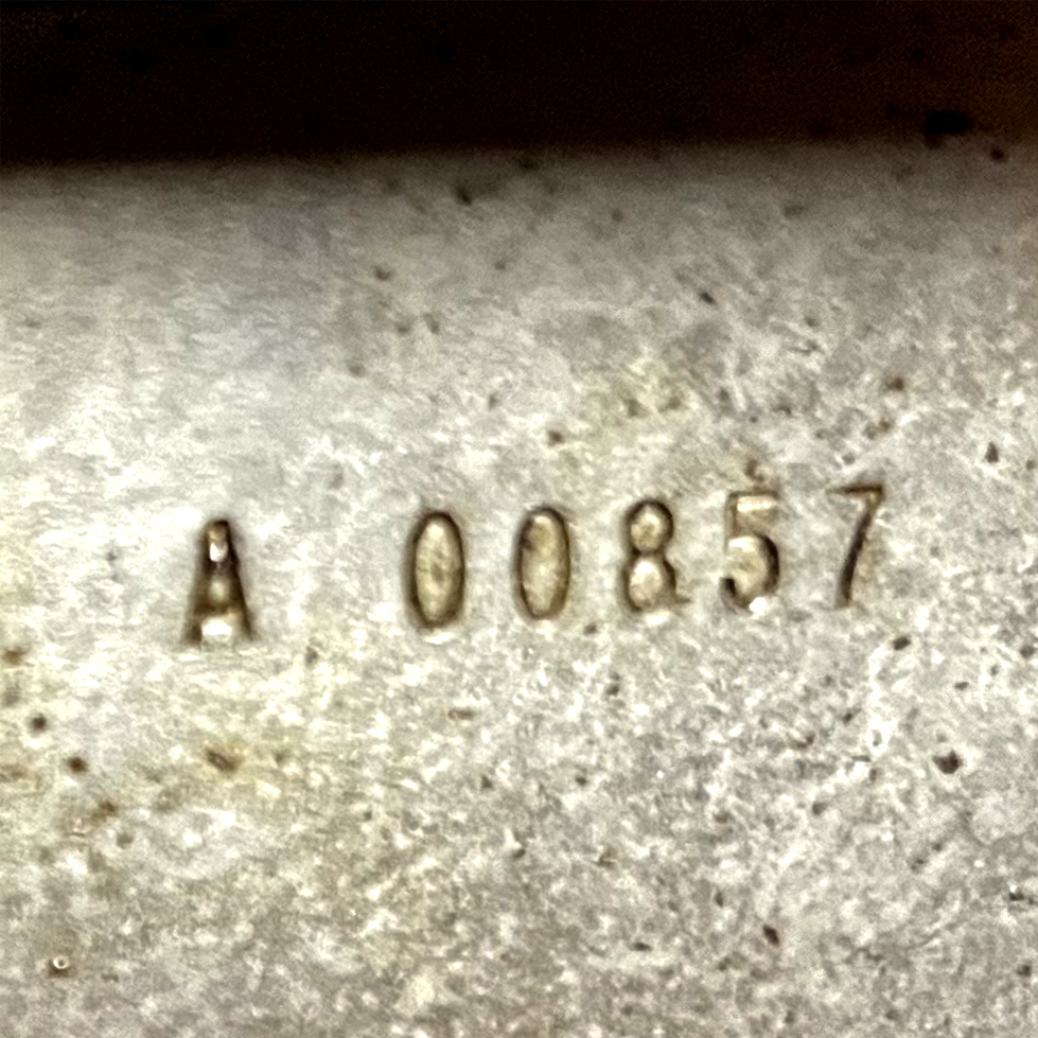

* Manufacturing date codes and interior pics are available per request: e-mail

Safe shipping worldwide!

For International Shipping- please note:

There will be additional costs for VAT + Custom Duty which have to be covered directly by the buyer, the costs can vary, depending on the destination, we do NOT cover those extra costs, thanks.

Weight 15 kg
Dimensions 70 × 50 × 60 cm
