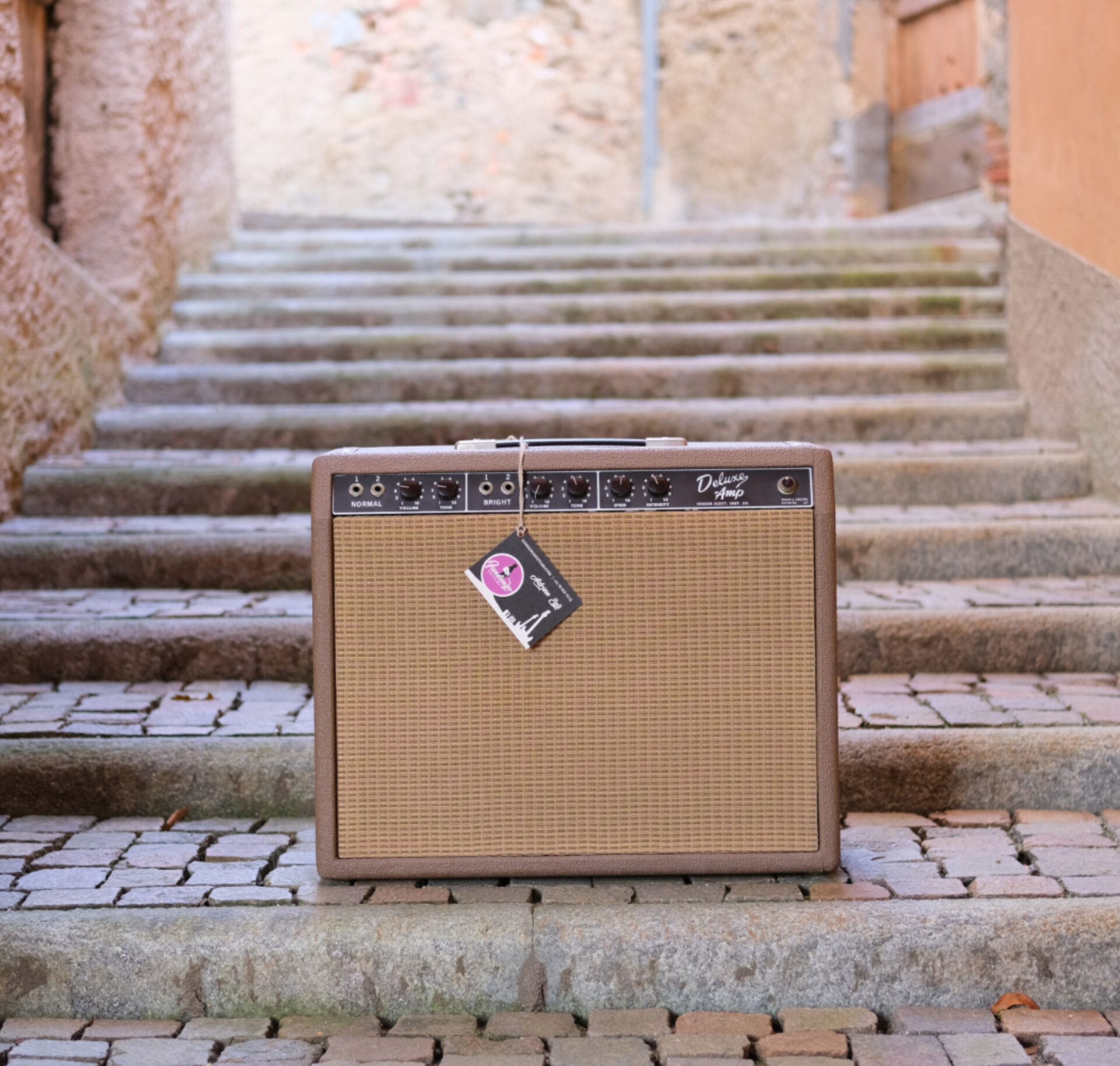

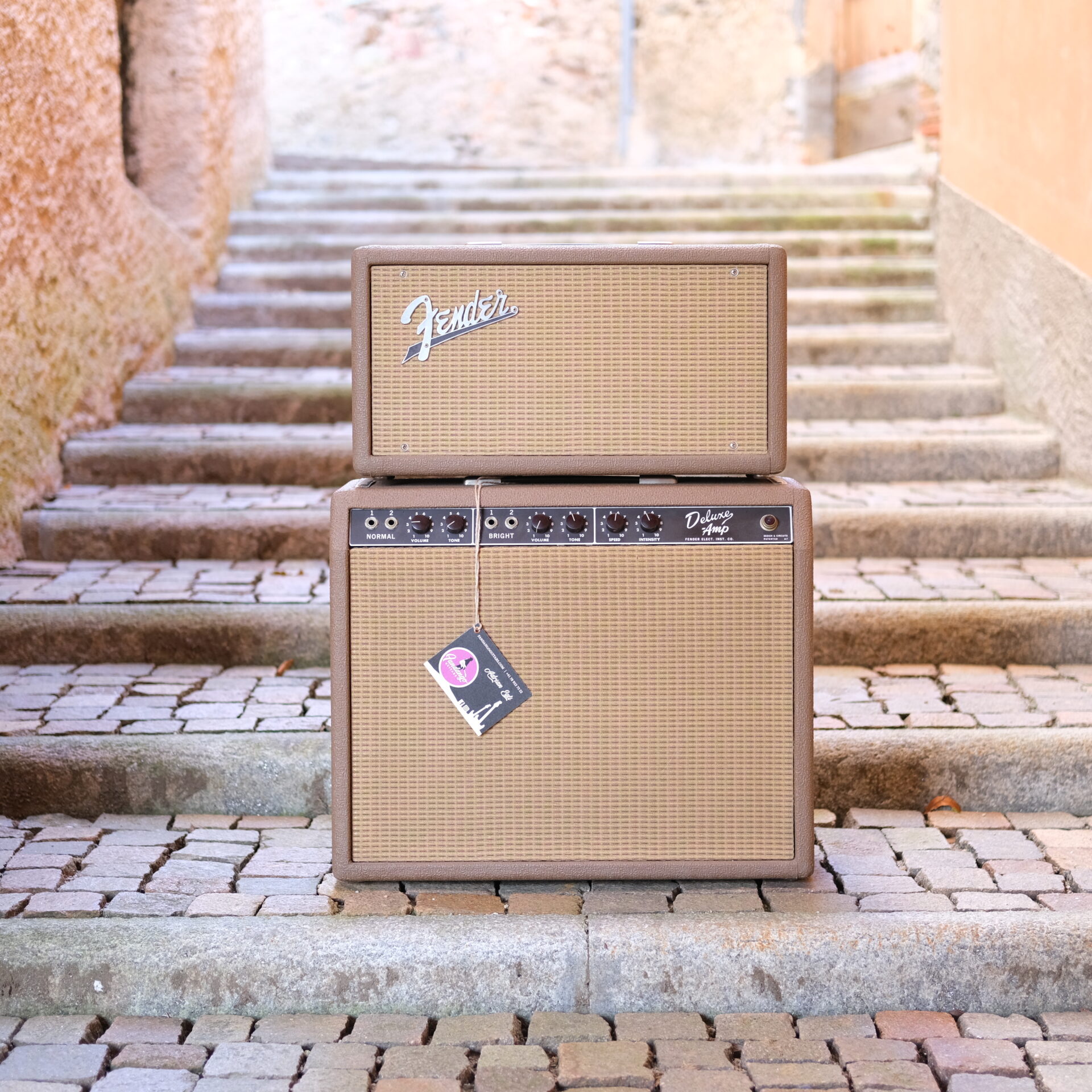

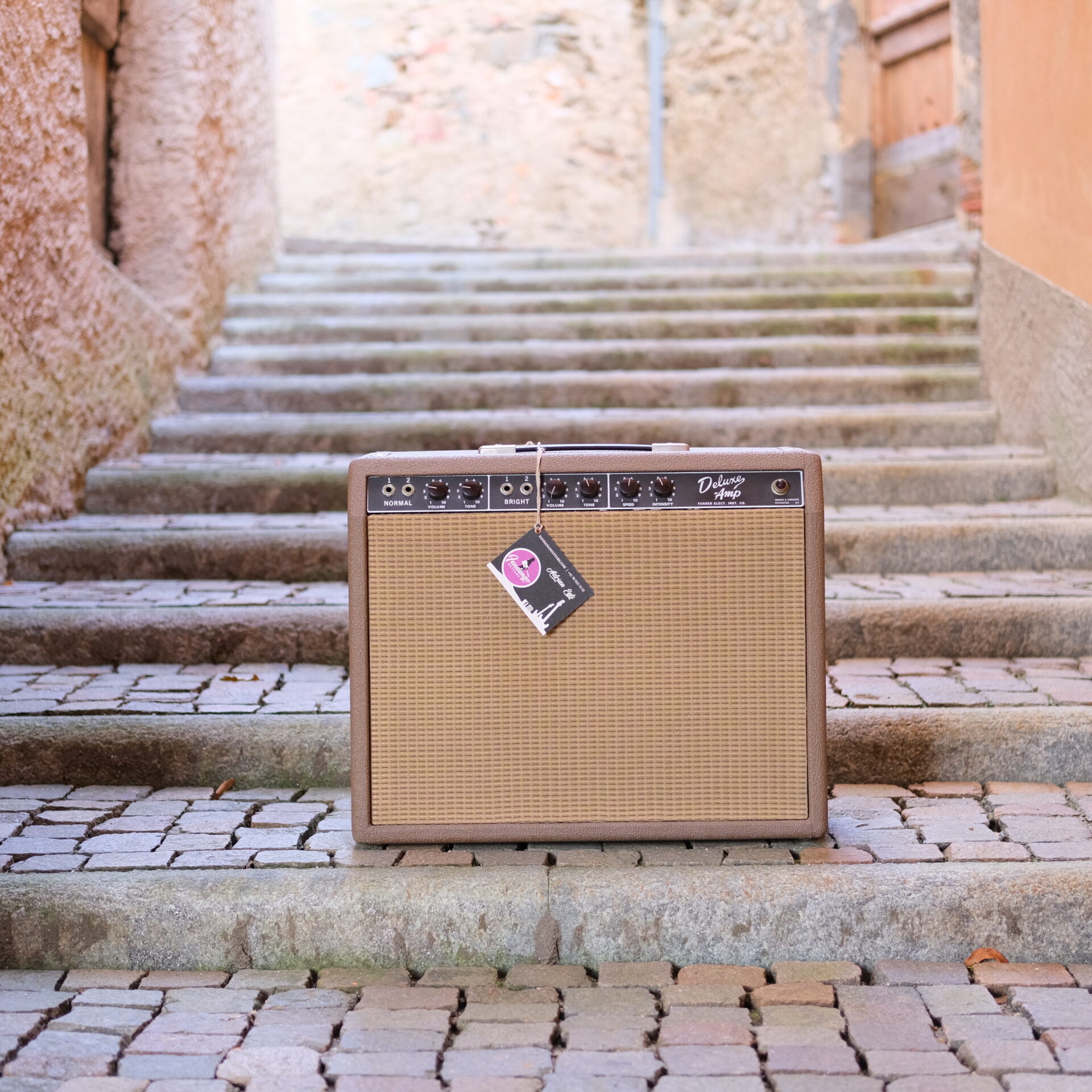

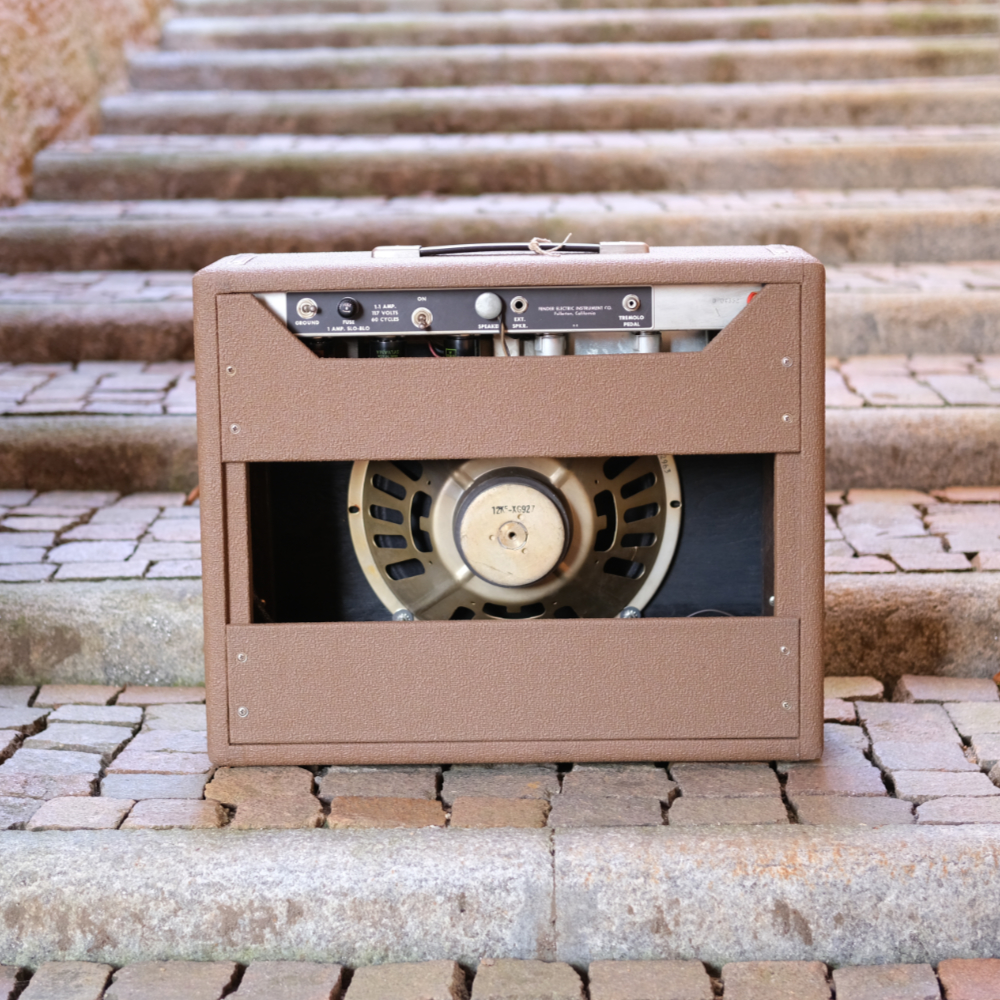

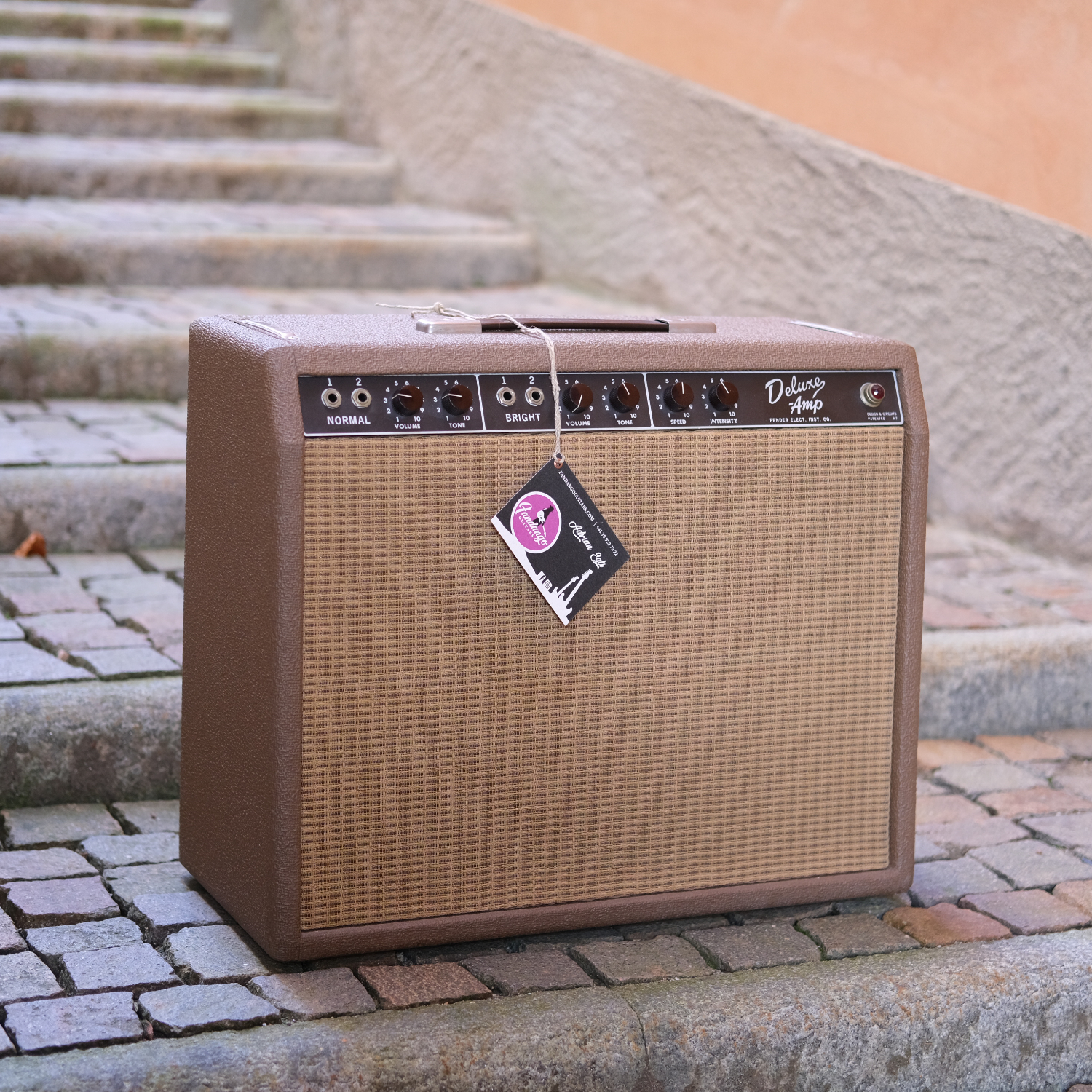

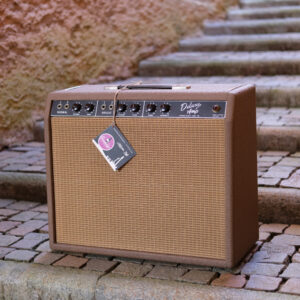

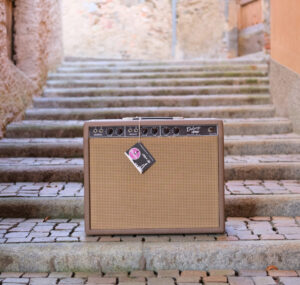

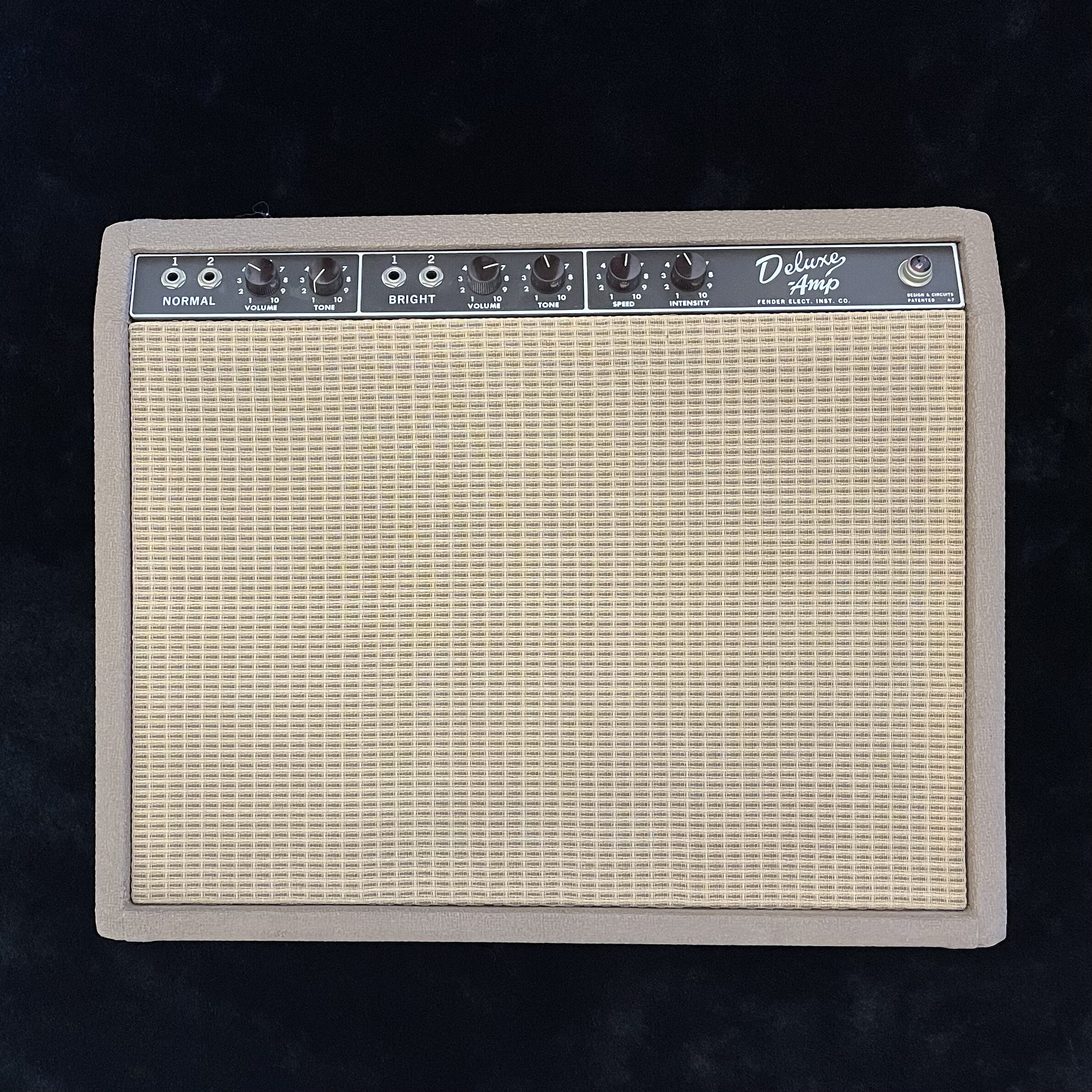

1963 Fender Deluxe 6G3 Brown tube-amp

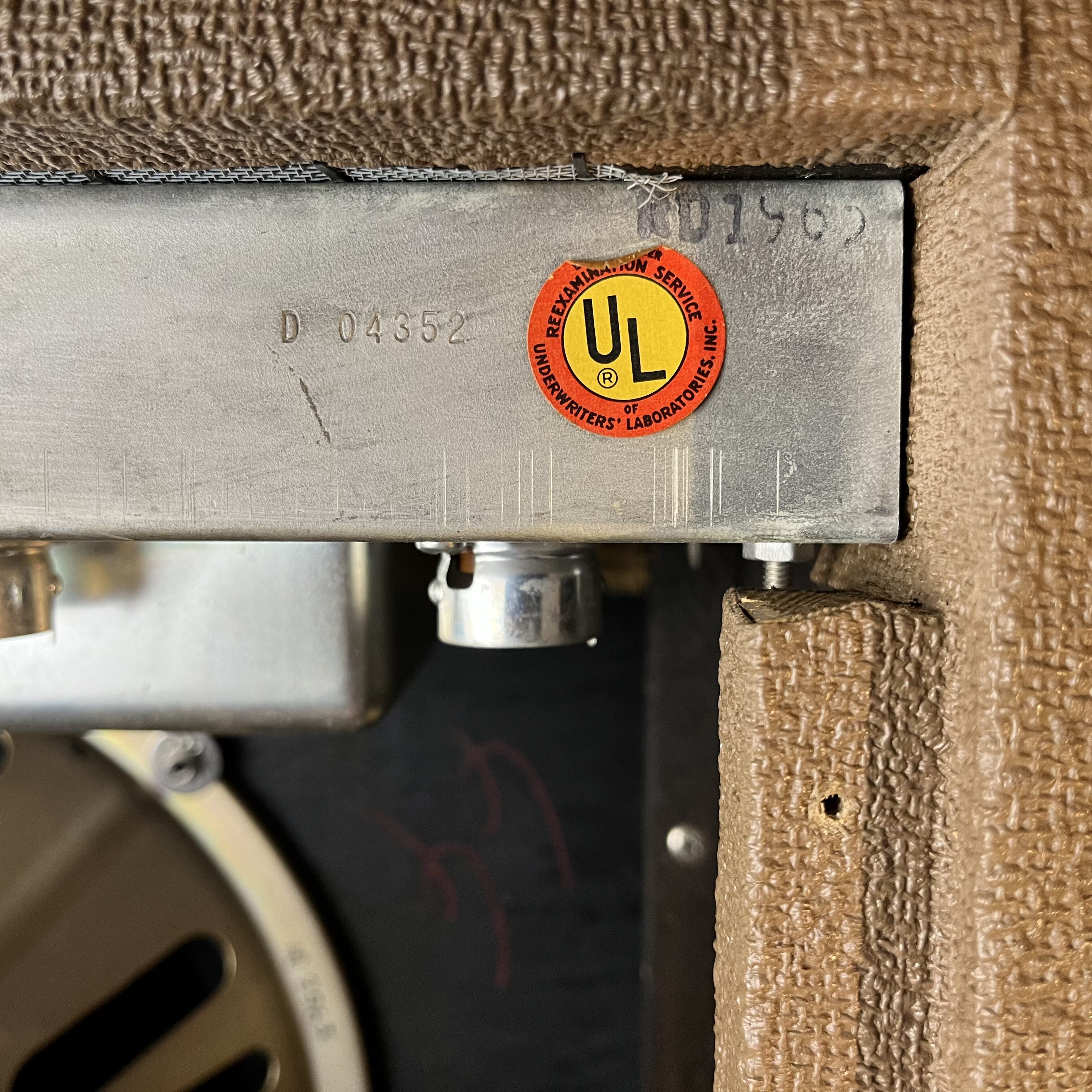

Serial number:D 04352 / 110V
Cosmetic condition: CLEAN

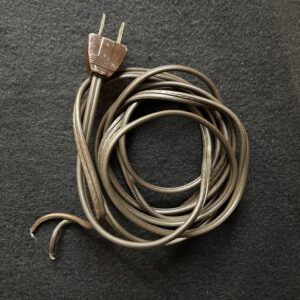

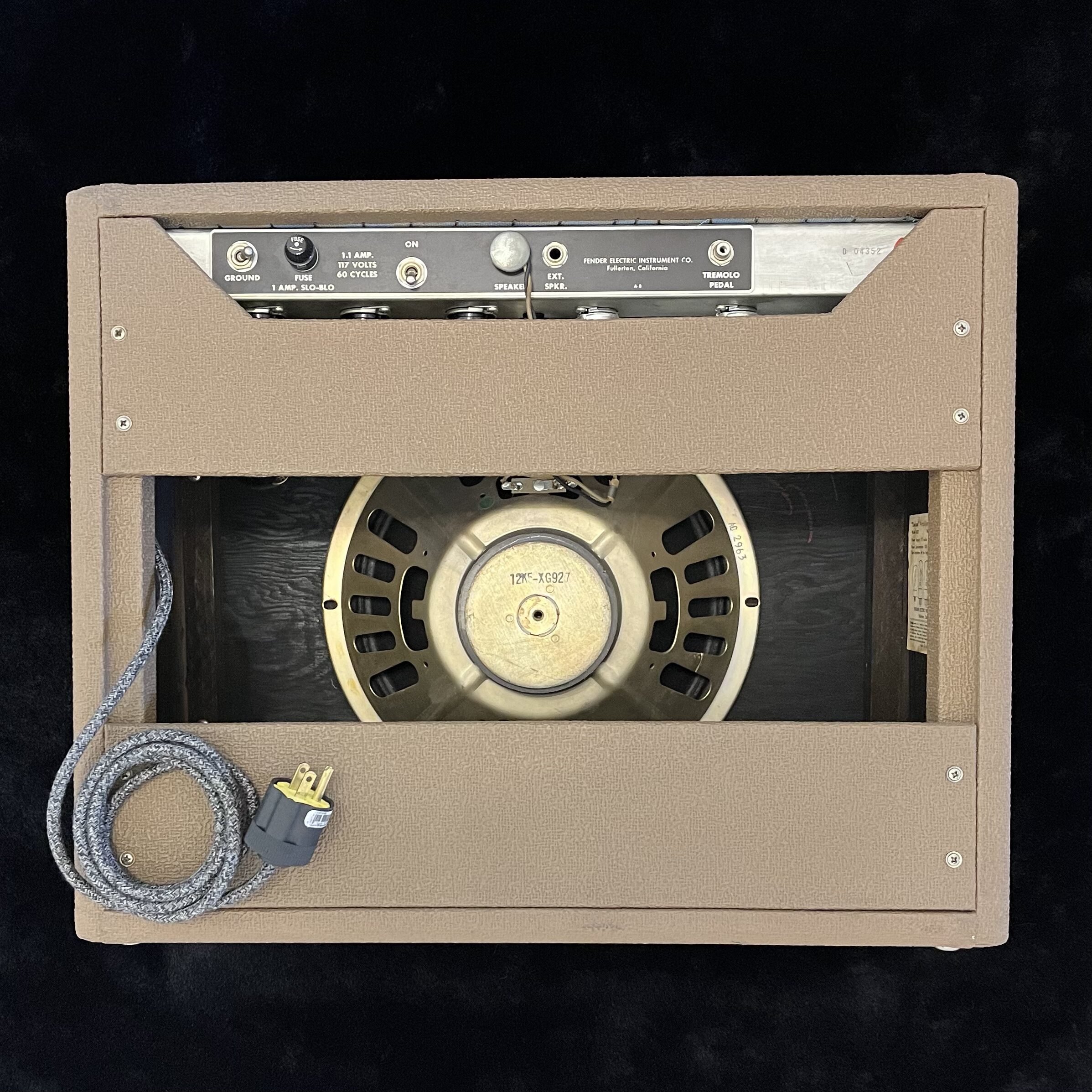

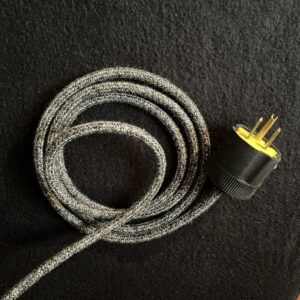

Upgrades/modifications: New safe 3-prong grounded power cord + plug (the original ones are included).
Serviced: YES
Description:
Incredible clean and all original condition with new safe 3-prong grounded power cord + plug installed.

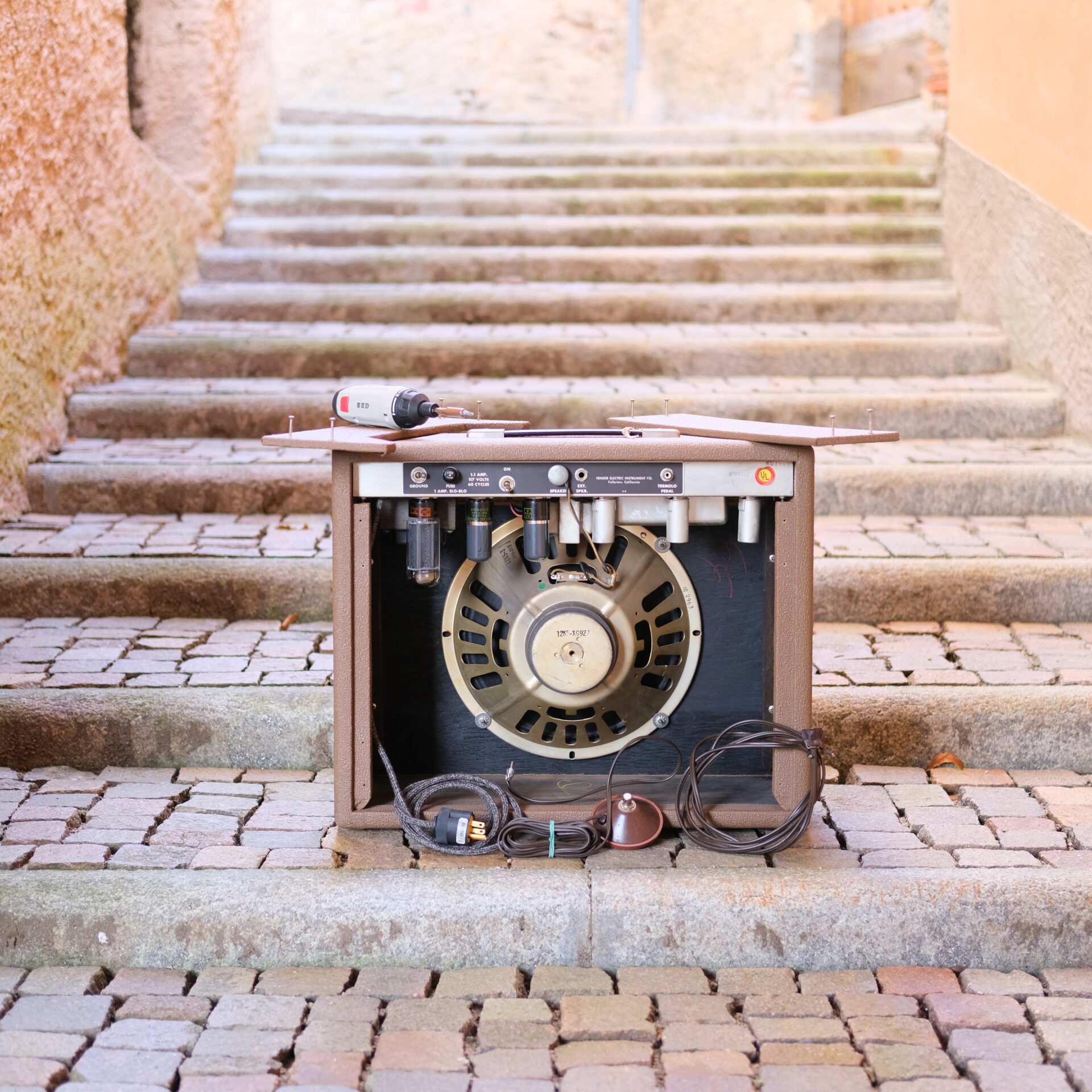

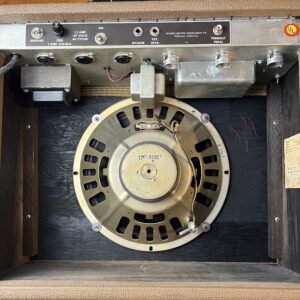

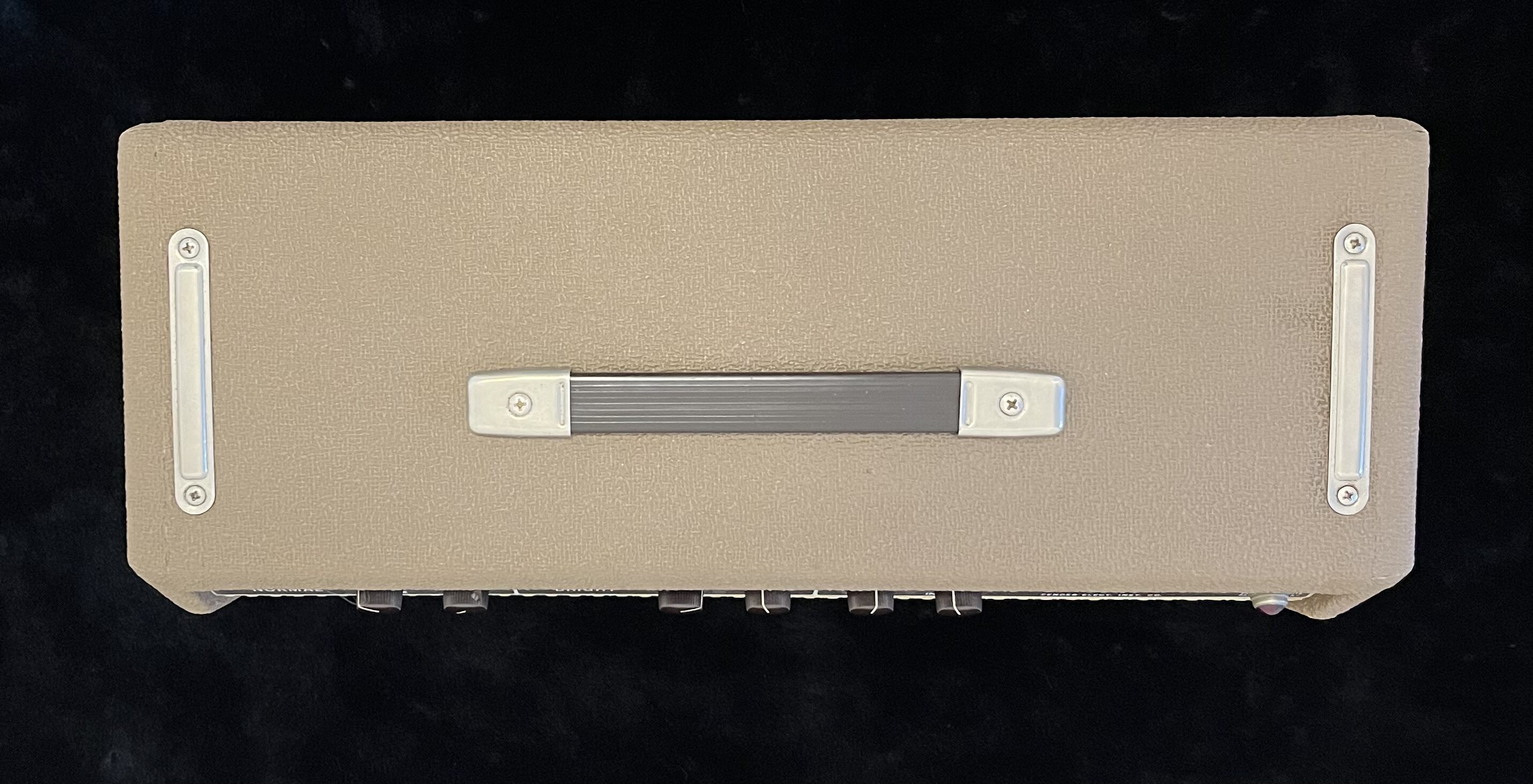

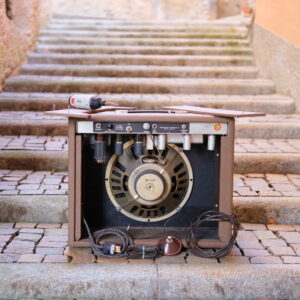

Original = circuit, output transformer, power transformer, Fender-branded Oxford 12K5-3 speaker, grill cloth, tolex, handle, foot switch.
This amp when used solely with a guitar is pure and instantly achieves what is known worldwide as the “Fender Brown Era Sound” = pure ZZ Top tone !!
Historical Overview:
The Fender Deluxe 6G3, produced from 1961 to 1963, represents the transitional “Brownface” era between the tweed amps of the 1950s and the later blackface models of the mid-’60s. It delivered around 20 watts of output through a single 12-inch speaker, powered by dual 6V6GT power tubes, a GZ34 rectifier, and 12AX7/7025 preamp tubes.
The 6G3 circuit is prized for its rich, touch-sensitive breakup — a more aggressive, mid-forward tone compared to the cleaner, scooped blackface sound that followed. It was one of the first Fender amps to feature bias-modulated tremolo, giving it a smooth, pulsating character.
By late 1963, the 6G3 was phased out and replaced by the AB763 Blackface Deluxe, making the Brown Deluxe relatively rare and highly collectible today.
Specifications:
- Modell: 6G3
- Black front panel

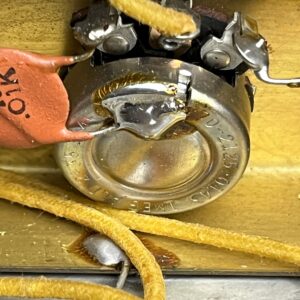

- Original circuit

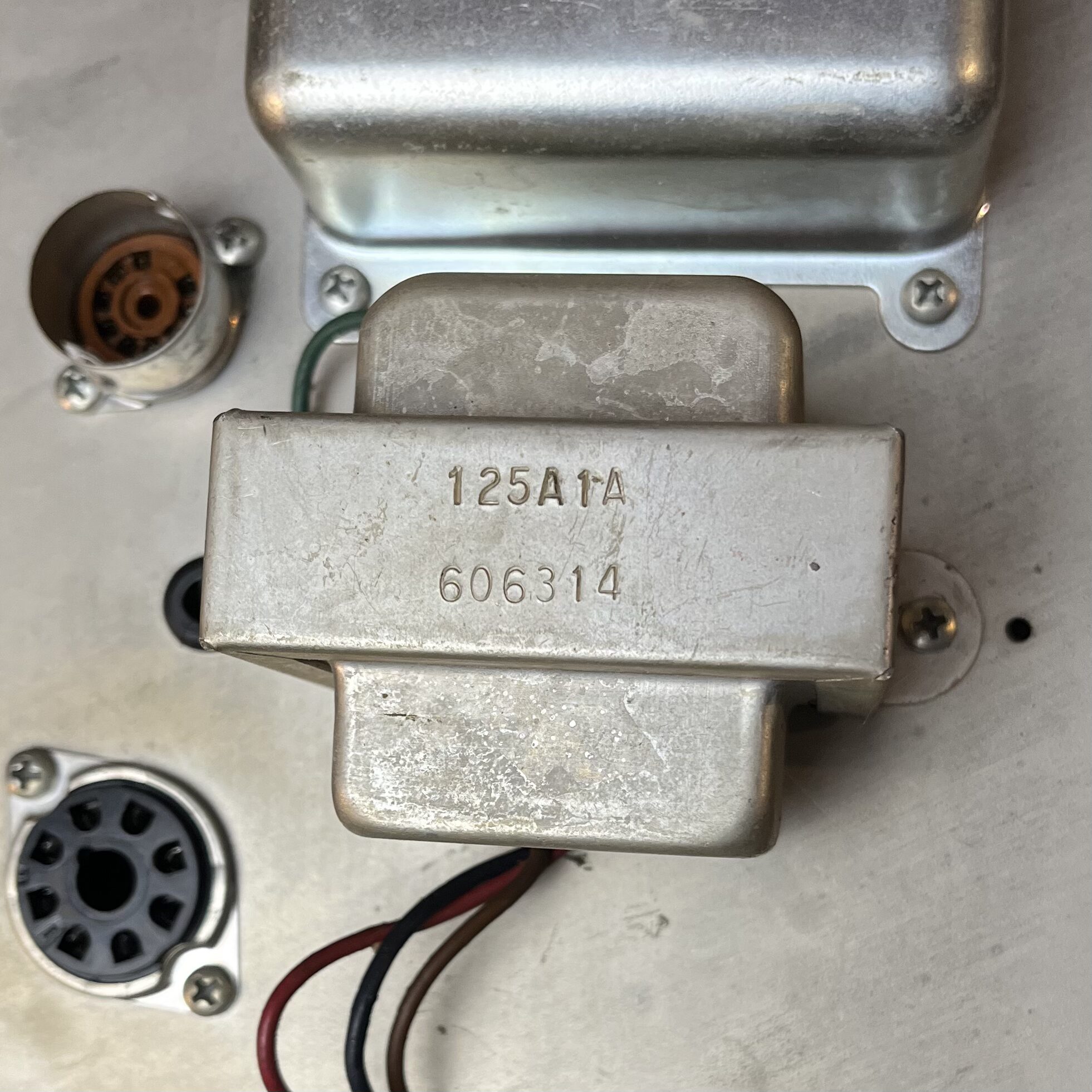

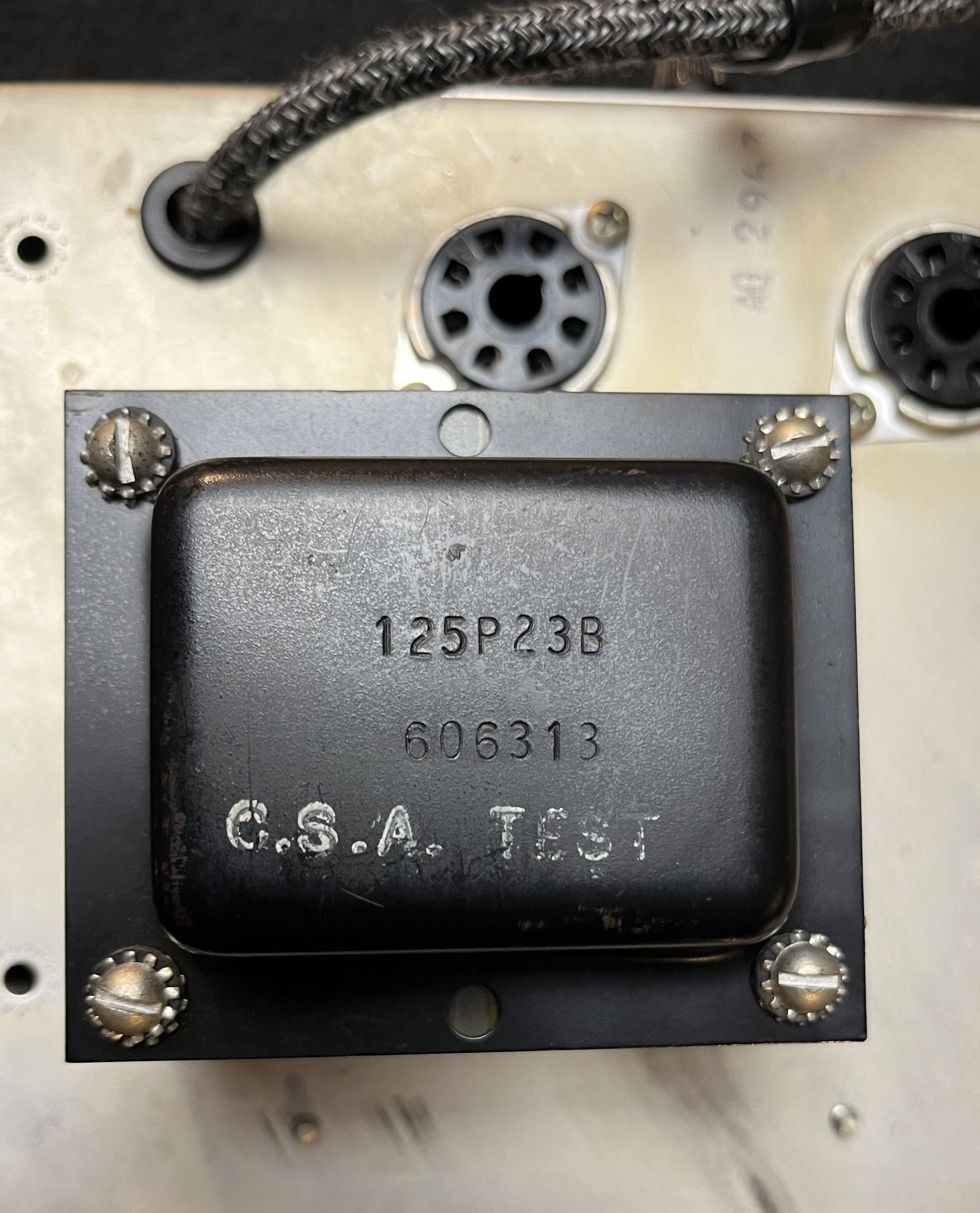

- Original transformers

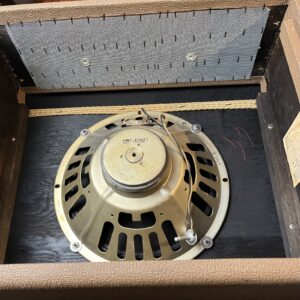

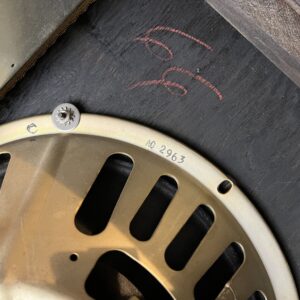

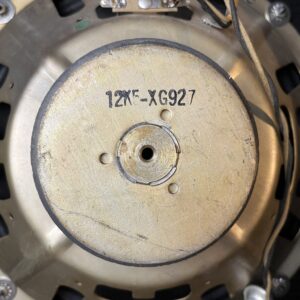

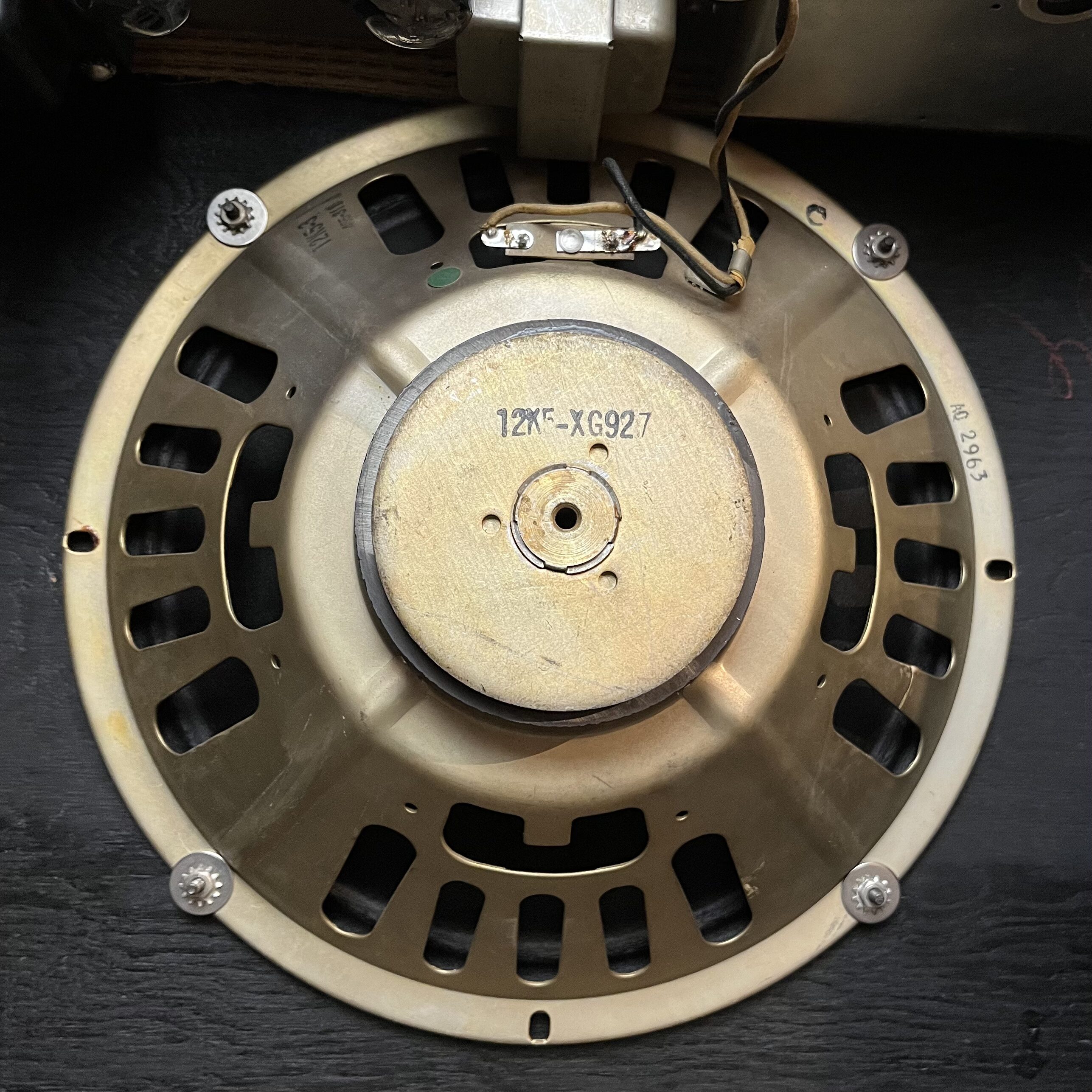

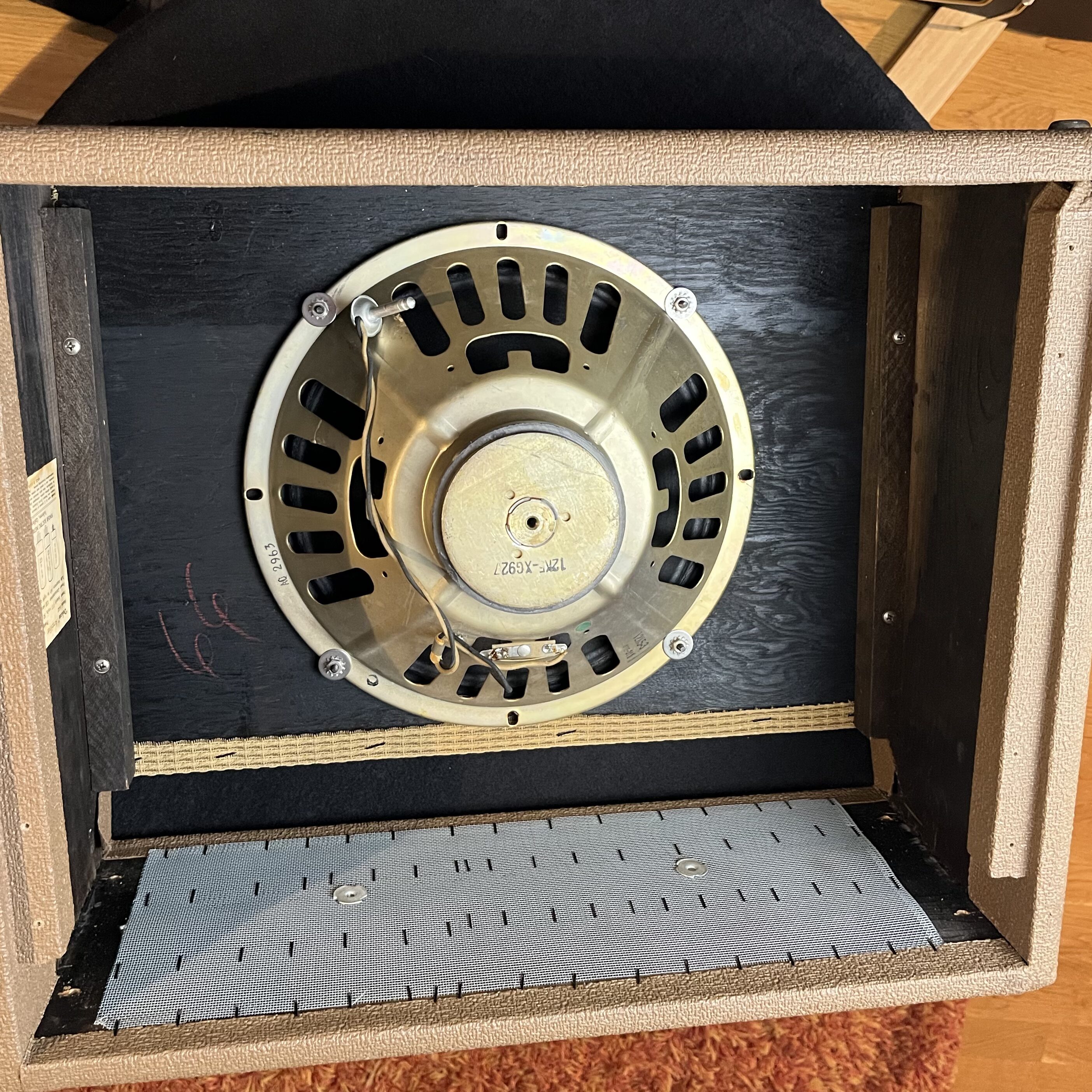

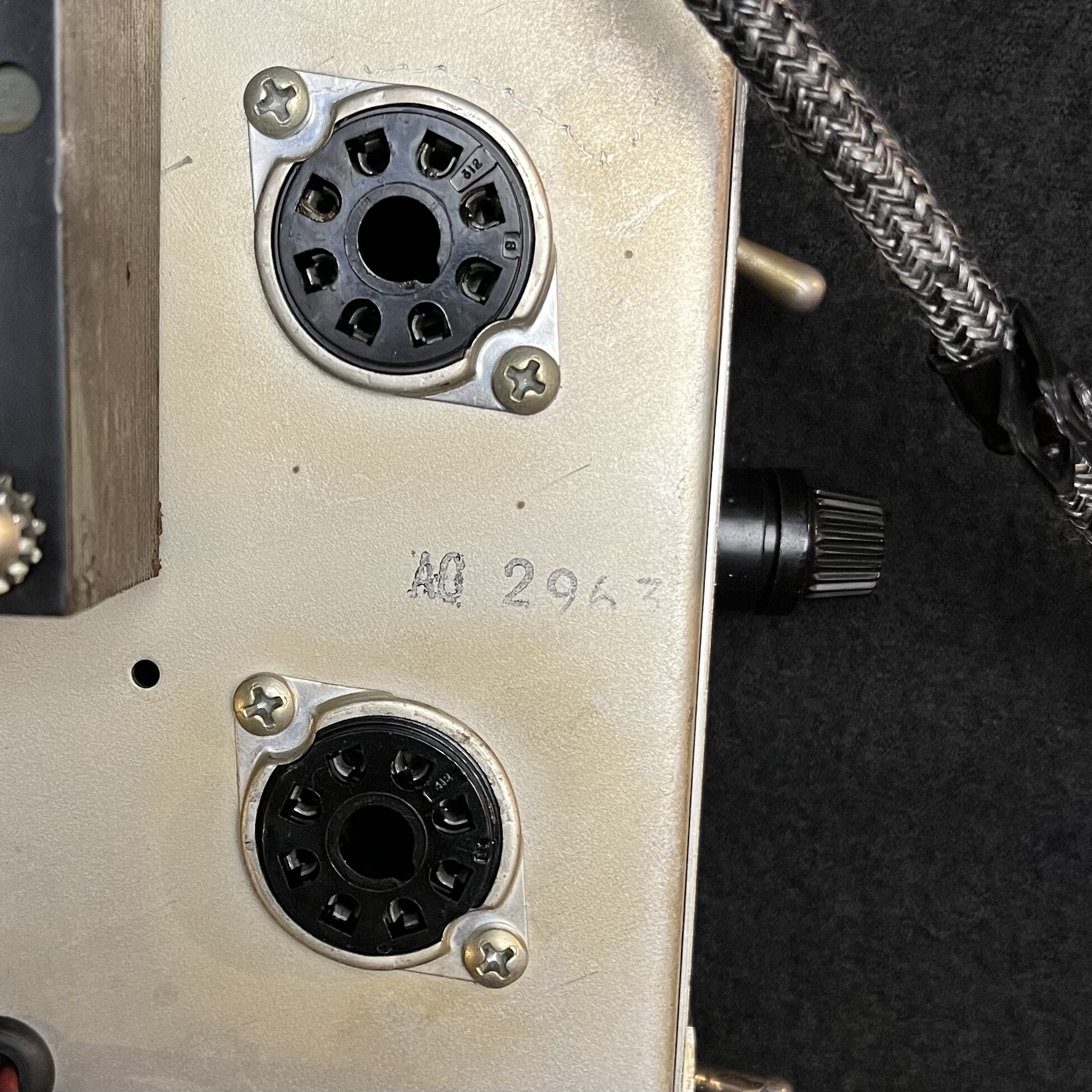

- Original Fender-branded Oxford 12K5-3 speaker marked = 12K5-XG927 & AC2963
- TubeChart Date: MG = July 1963

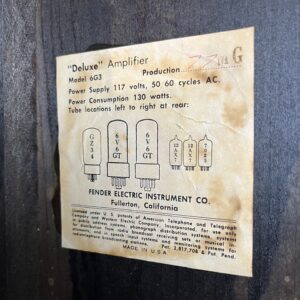

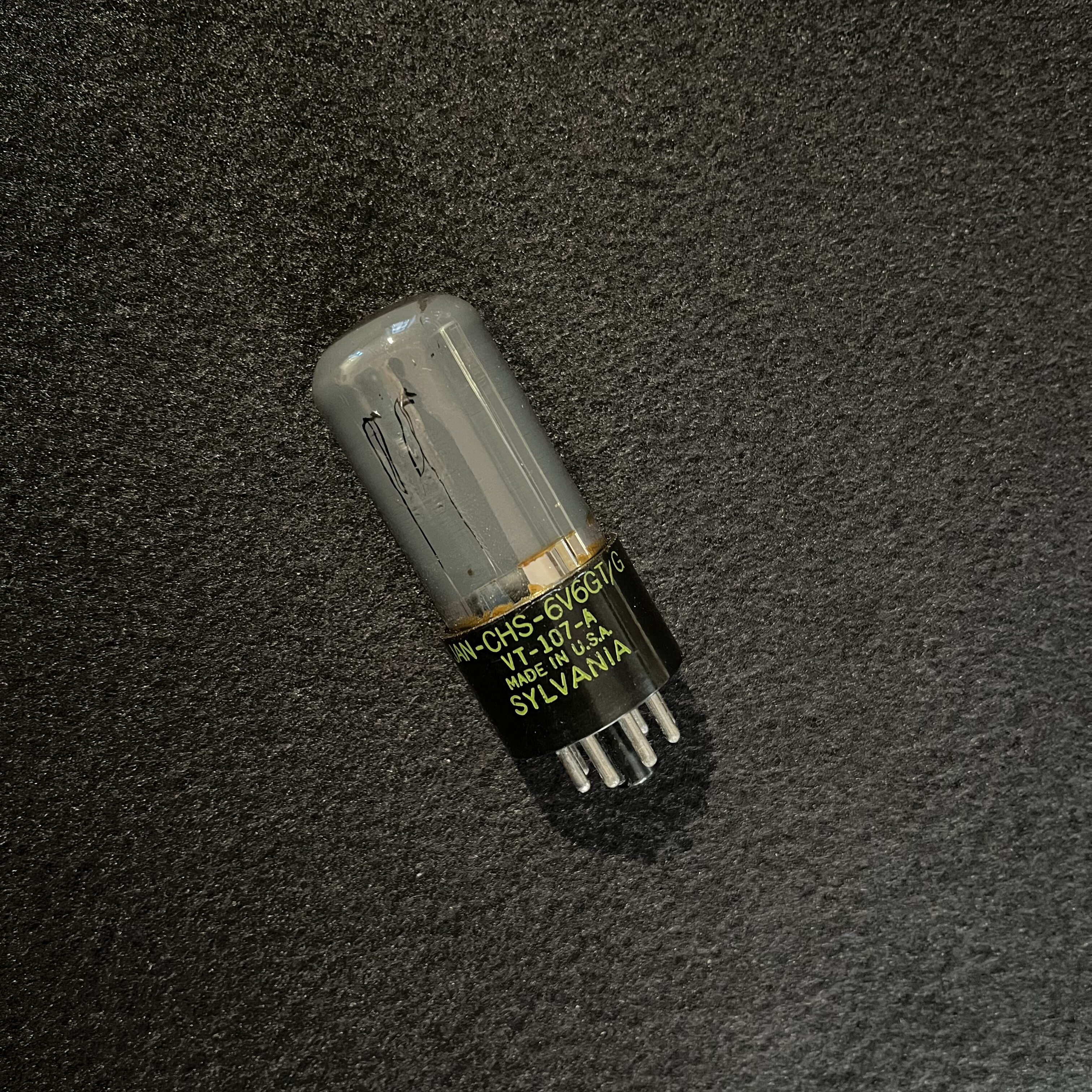

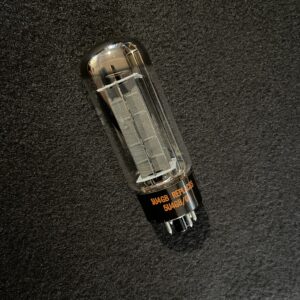

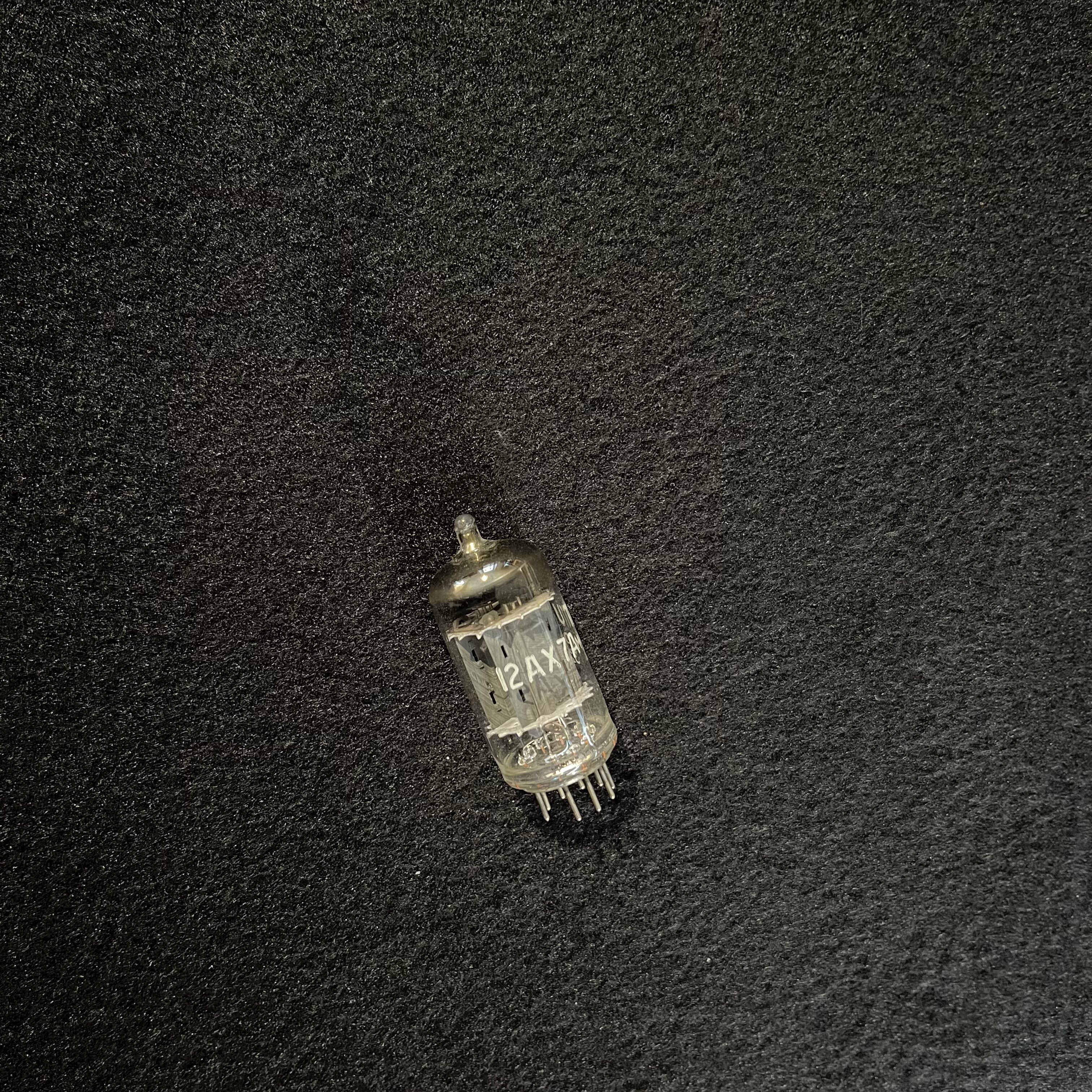

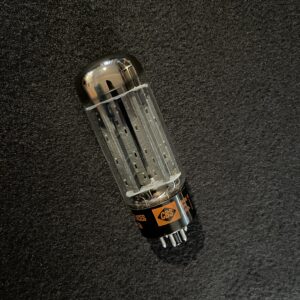

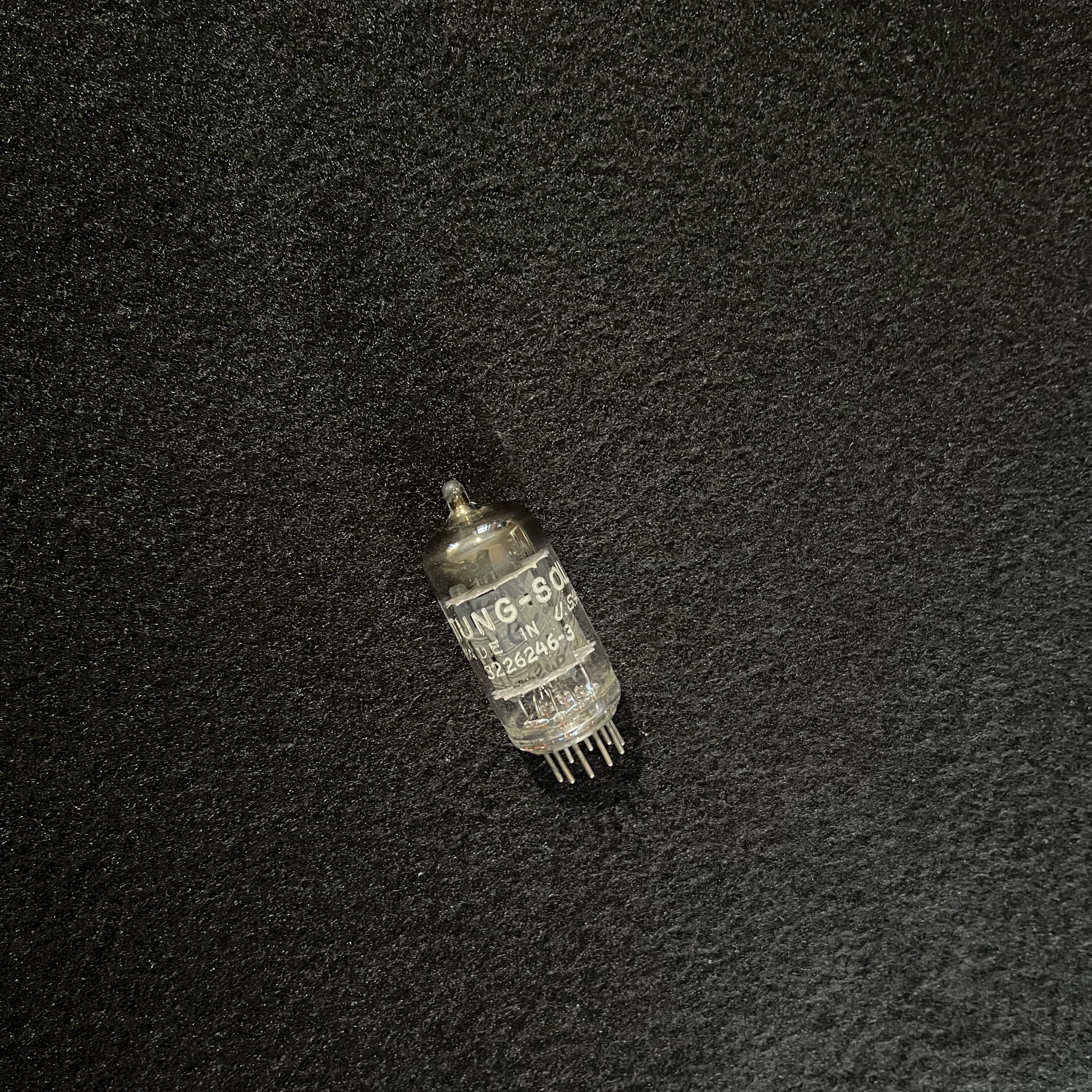

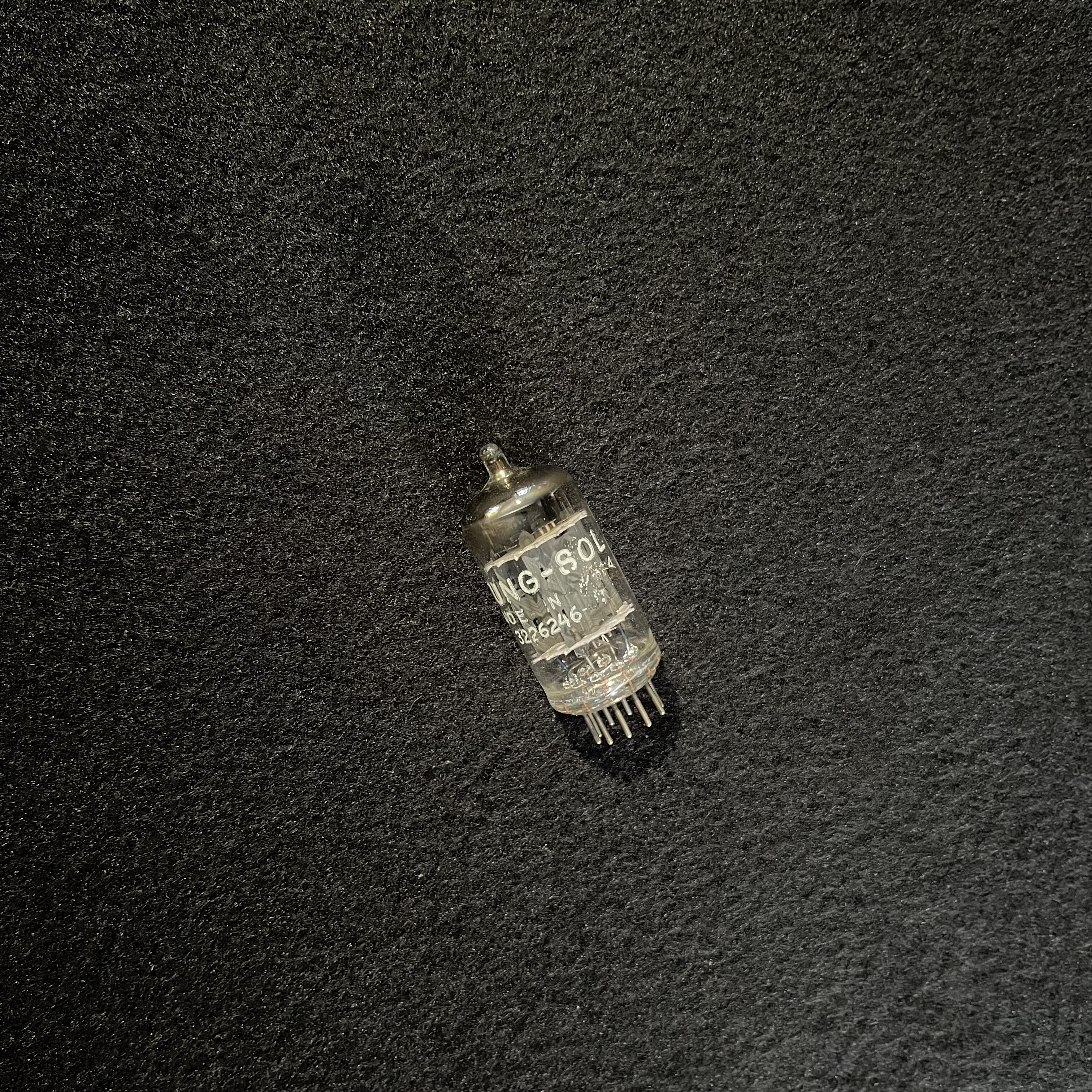

- Tube layout: 1x GZ34 /2x 6V6GT/2x 12AX7 / 1x 7025
- Inputs: 2 x Instrument

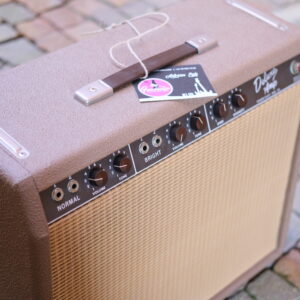

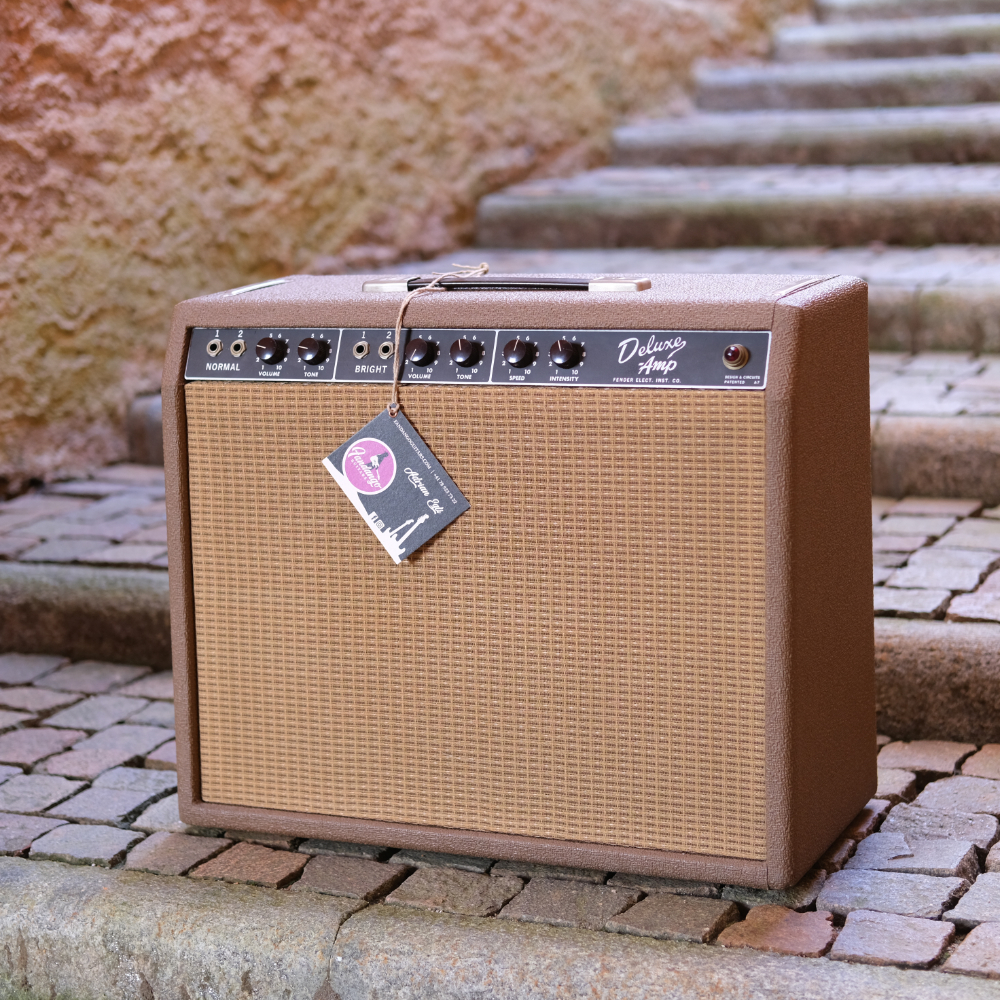

- Controls: Normal = Volume/Tone & Bright = Volume/Tone/Speed/Intensity
- Height is 17 in. (43.2 cm.), 20 3/4 in. (52.7 cm.) width, and 8 1/2 in. (21.6 cm.) .
- Weight is 12.7 kg / 28,15 Lbs

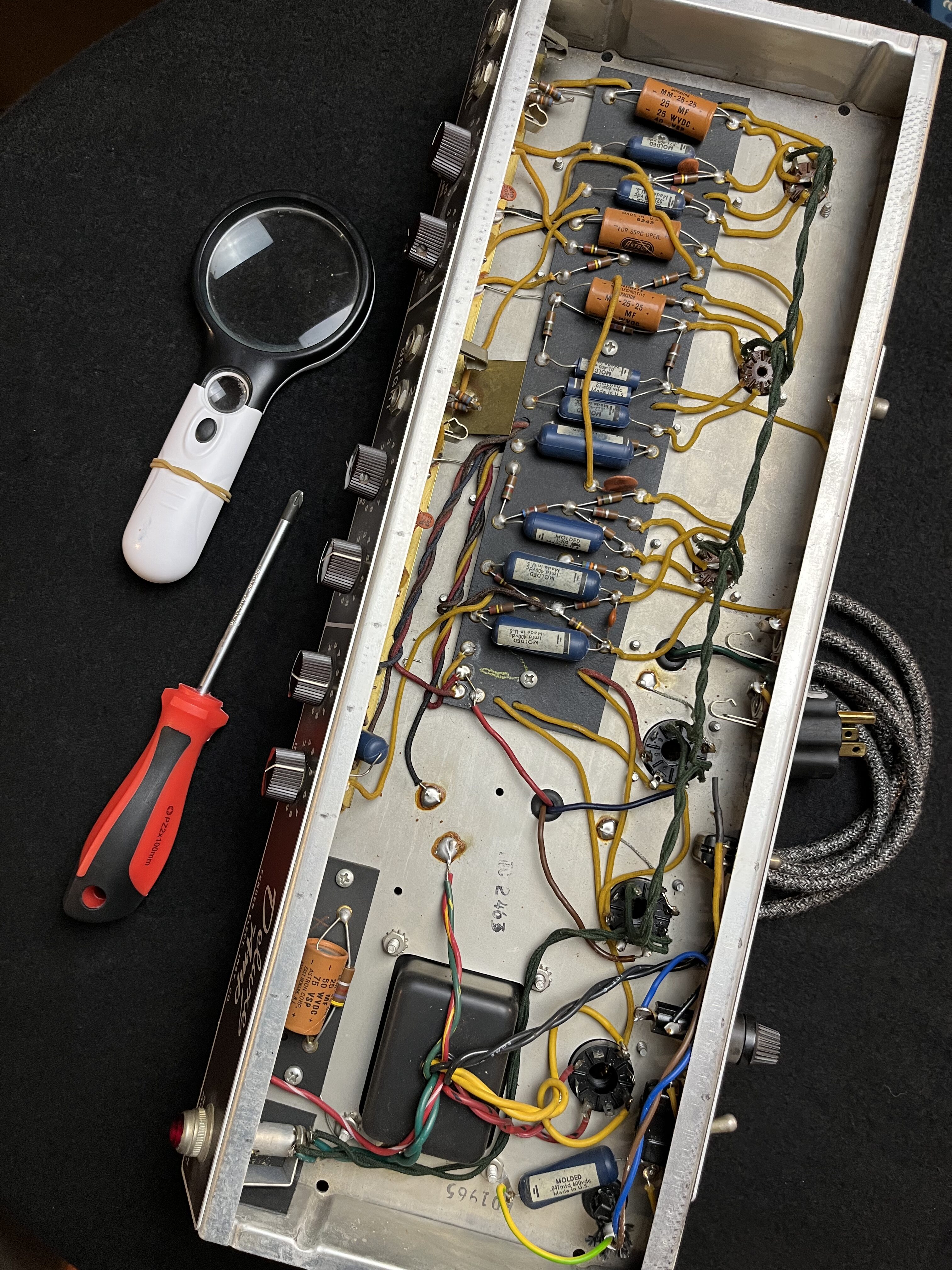

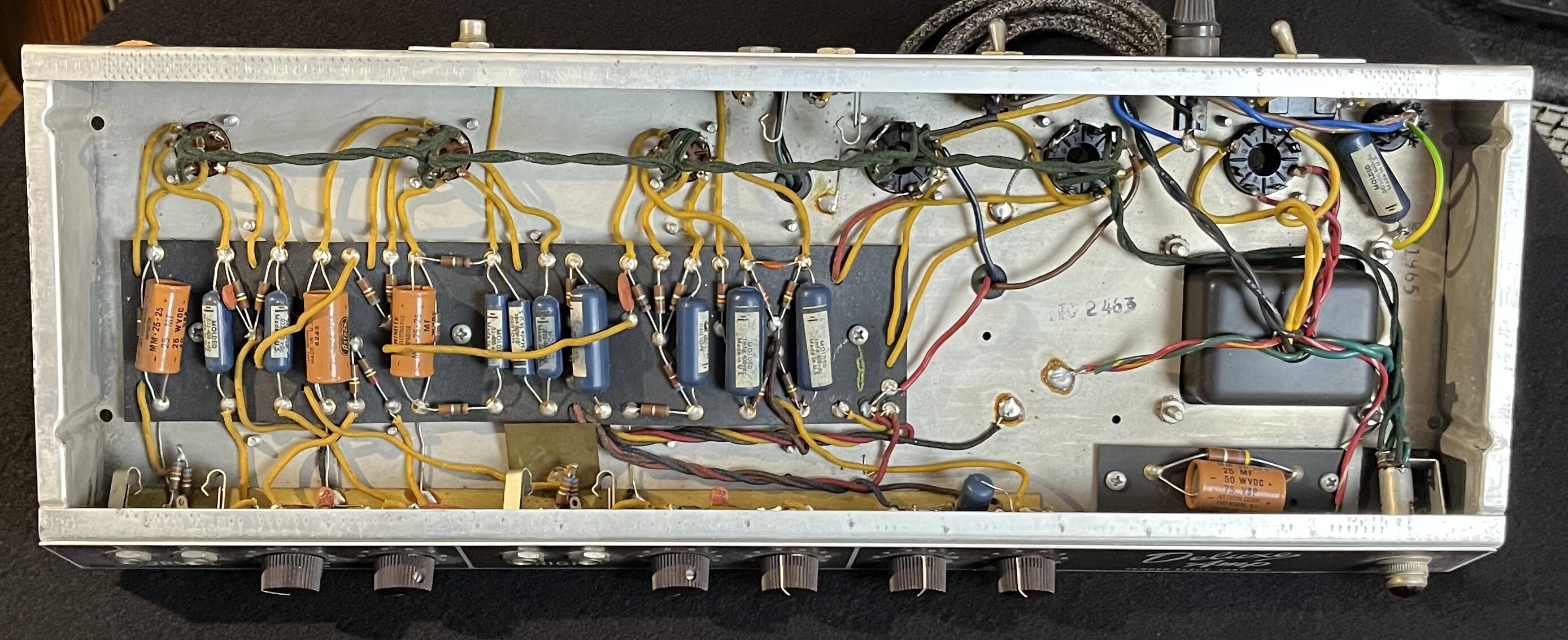

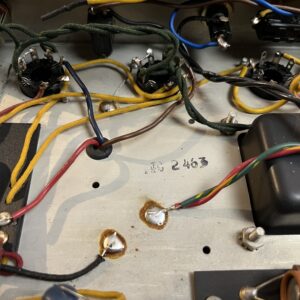

* Manufacturing date codes and interior pics are available per request: e-mail
| Weight | 15 kg |
|---|---|
| Dimensions | 60 × 35 × 50 cm |
