1960 Fender Deluxe 5E3 Tweed tube-amplifier

Serial number: D 09631 / 110V

Cosmetic condition: Very Good see pics

Upgrades/modifications: safe power cord incl. new solid plug, only very few added new quality filter capacitors and resistors (mostly all original Astrons).

Description:

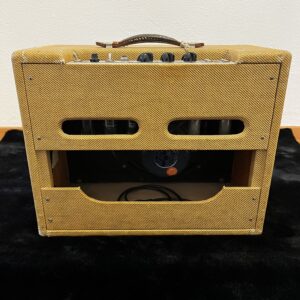

Original 1960 Fender Tweed Deluxe 5E3 tube-amp- narrow panel, made in Fullerton, California.

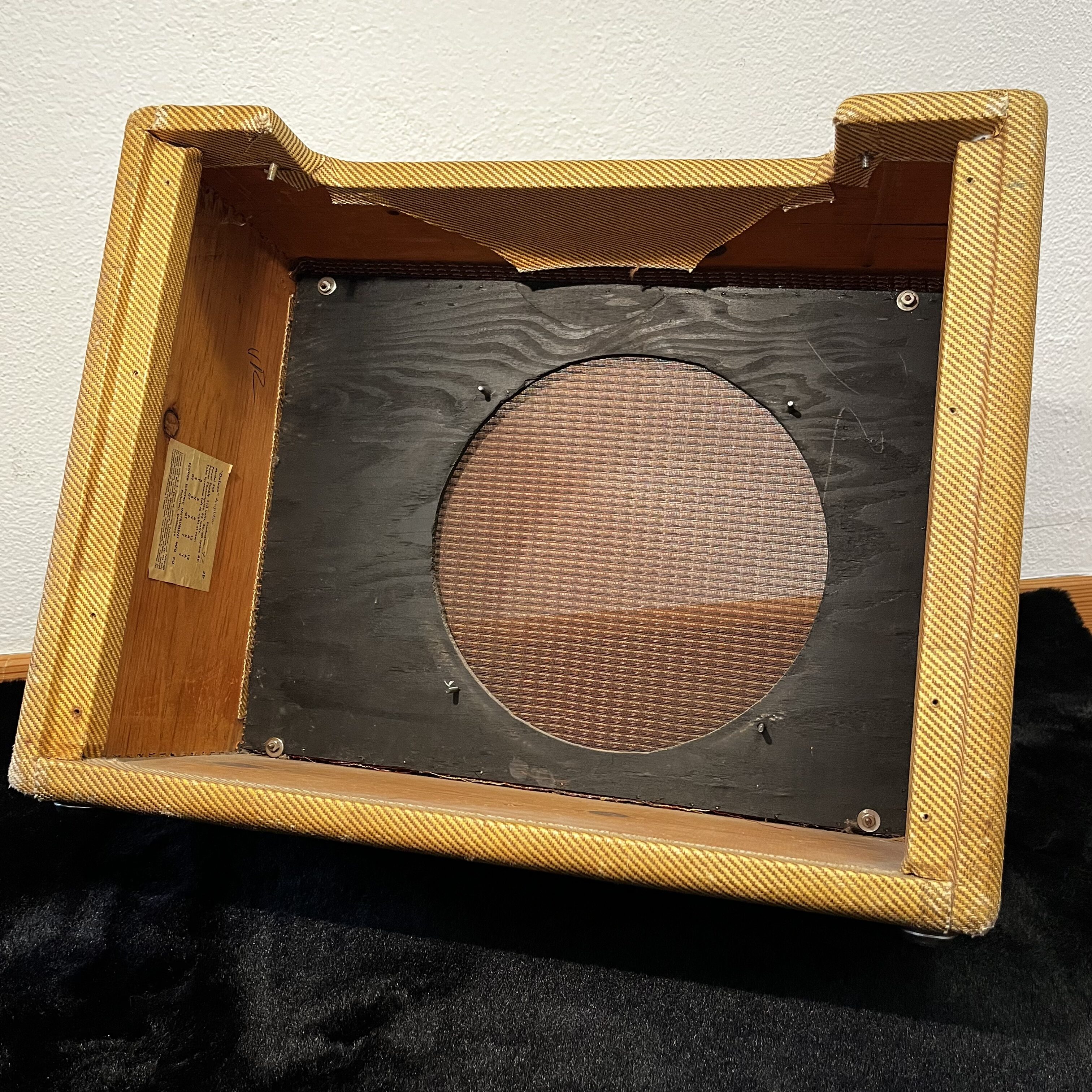

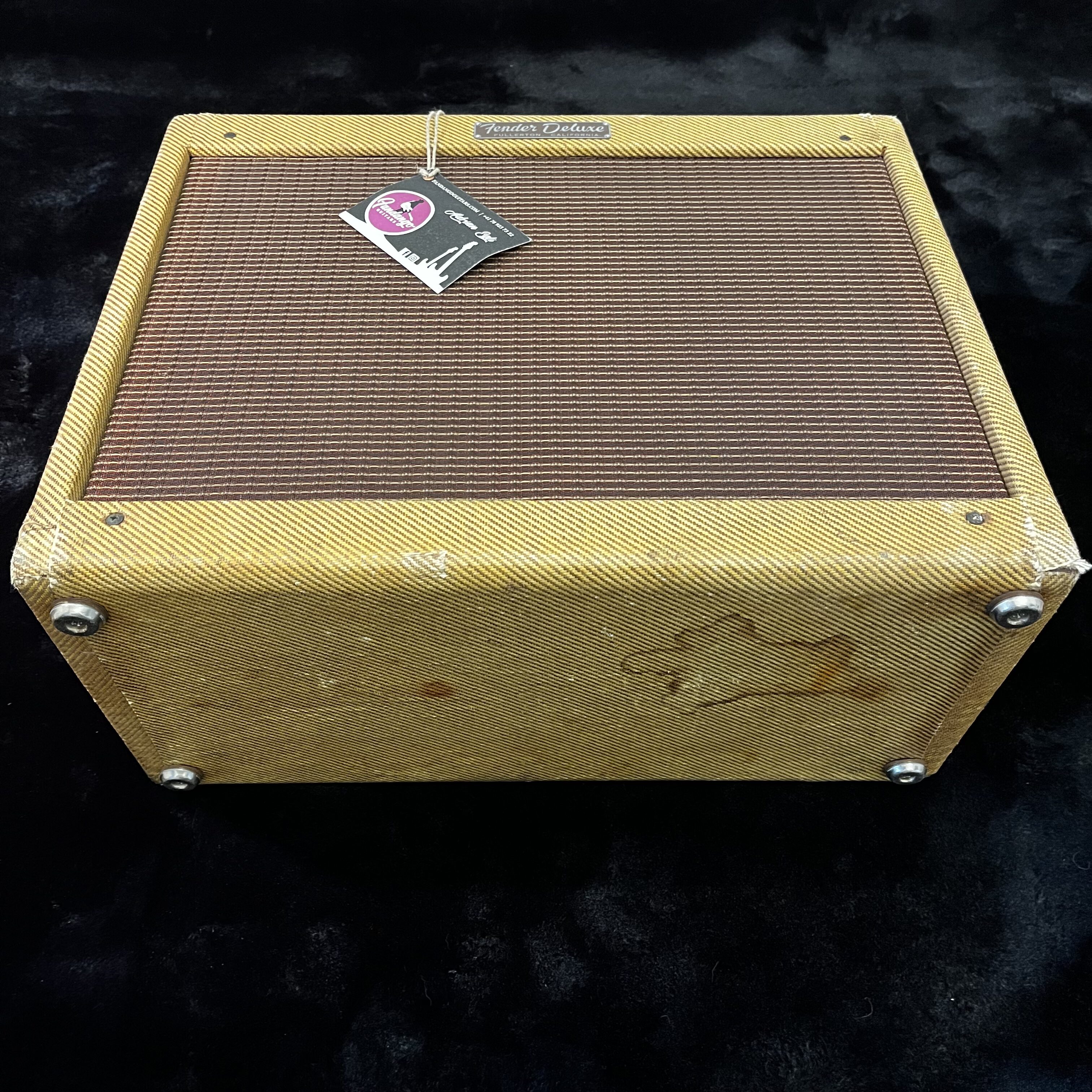

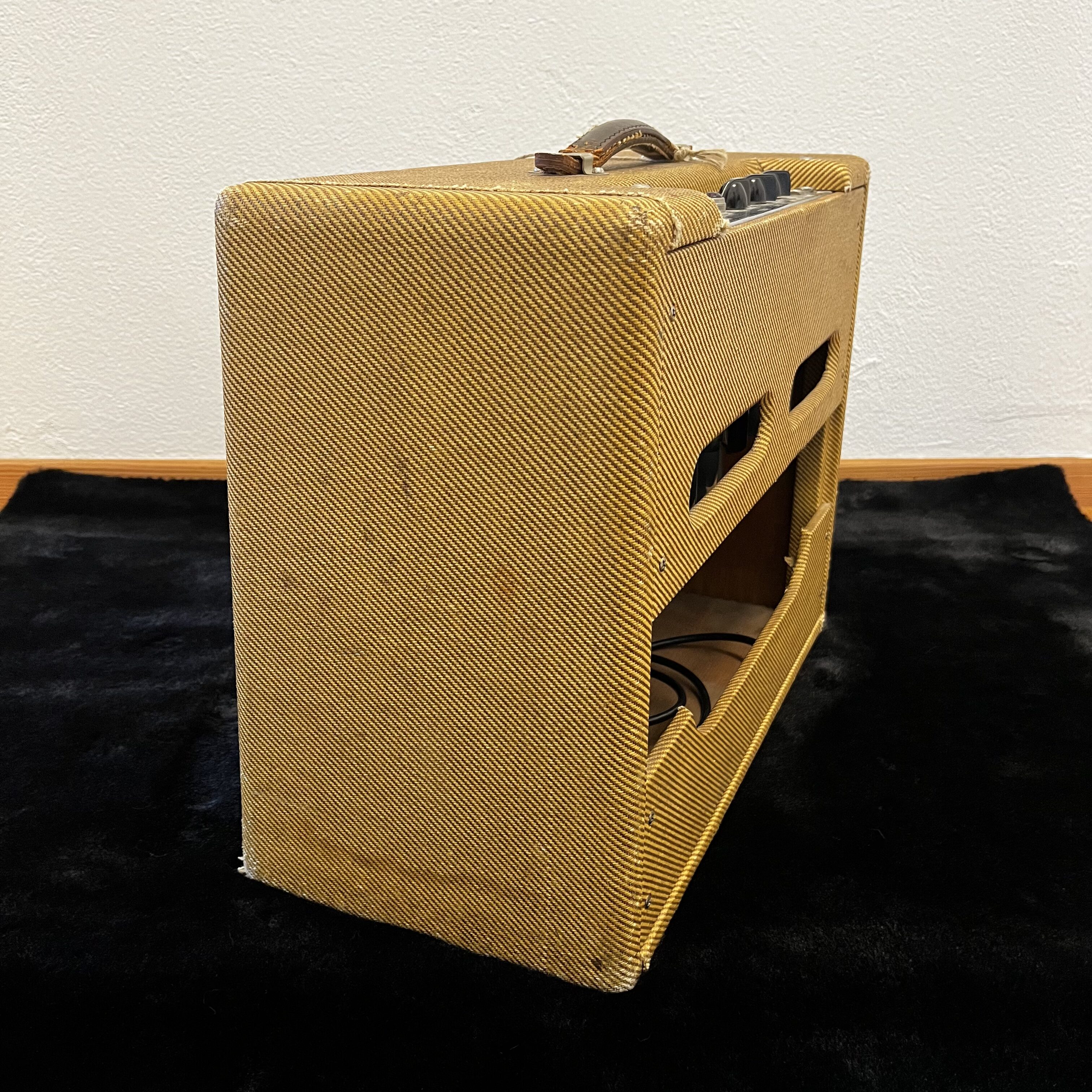

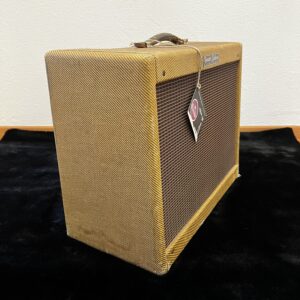

The original lacquered tweed is still in good shape with some signs of wear, see pics.

This amplifier has been well cared inside for over decades and is stocked with the original Jensen P12R Alnico speaker, original transformers, original circuit, tolex, grill-cloth and leather handle.

A 1960 Fender Deluxe 5E3 uses five tubes: two 6V6s (power), a 5Y3GT (rectifier), a 12AY7 (V1 preamp), and a 12AX7 (V2 preamp/phase inverter), with the tube chart showing their layout from right to left on the rear of the chassis as 12AX7, 12AX7, 6V6, 6V6, 5Y3GT, creating its distinct sound with interactive controls and early breakup.

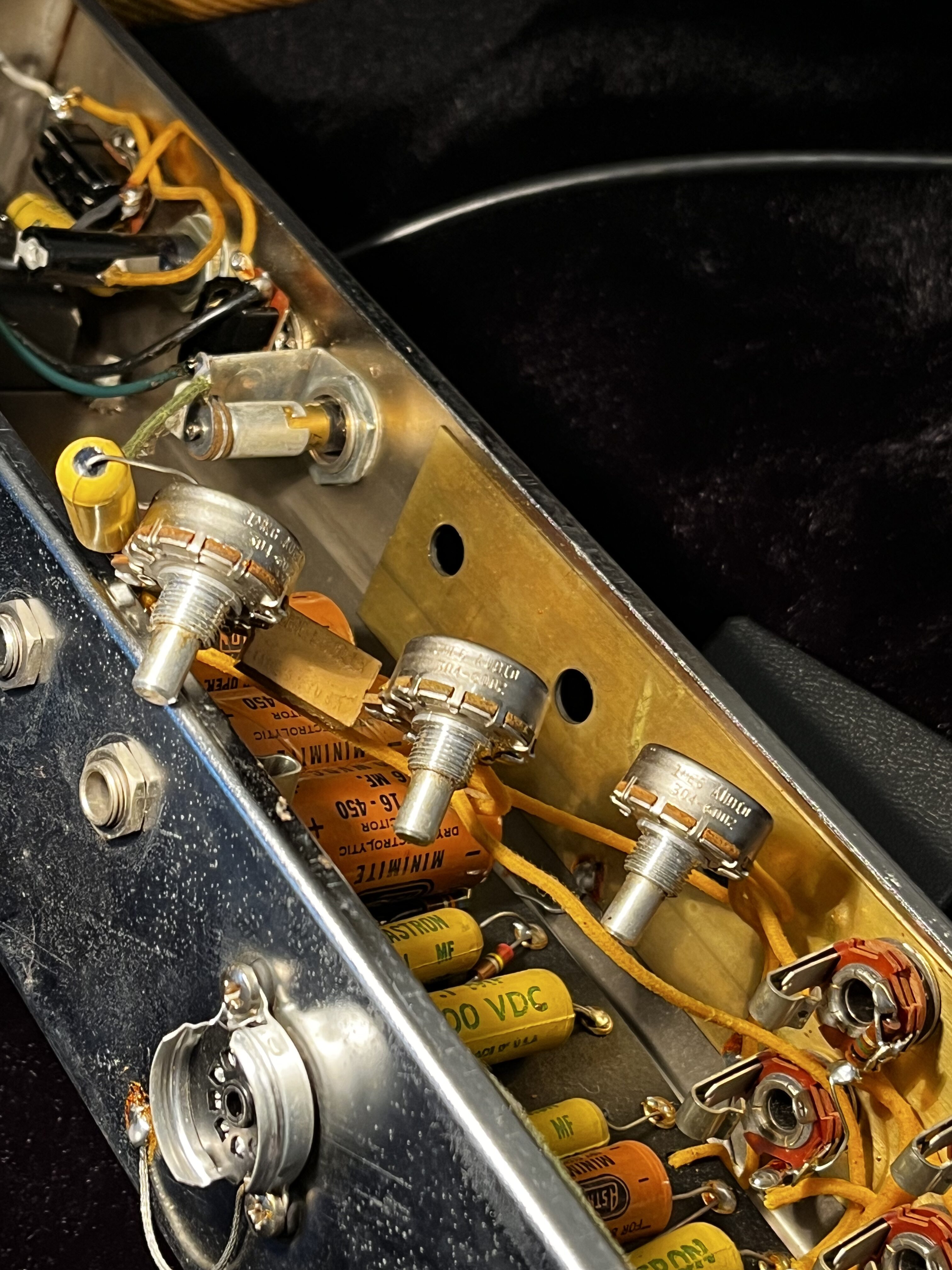

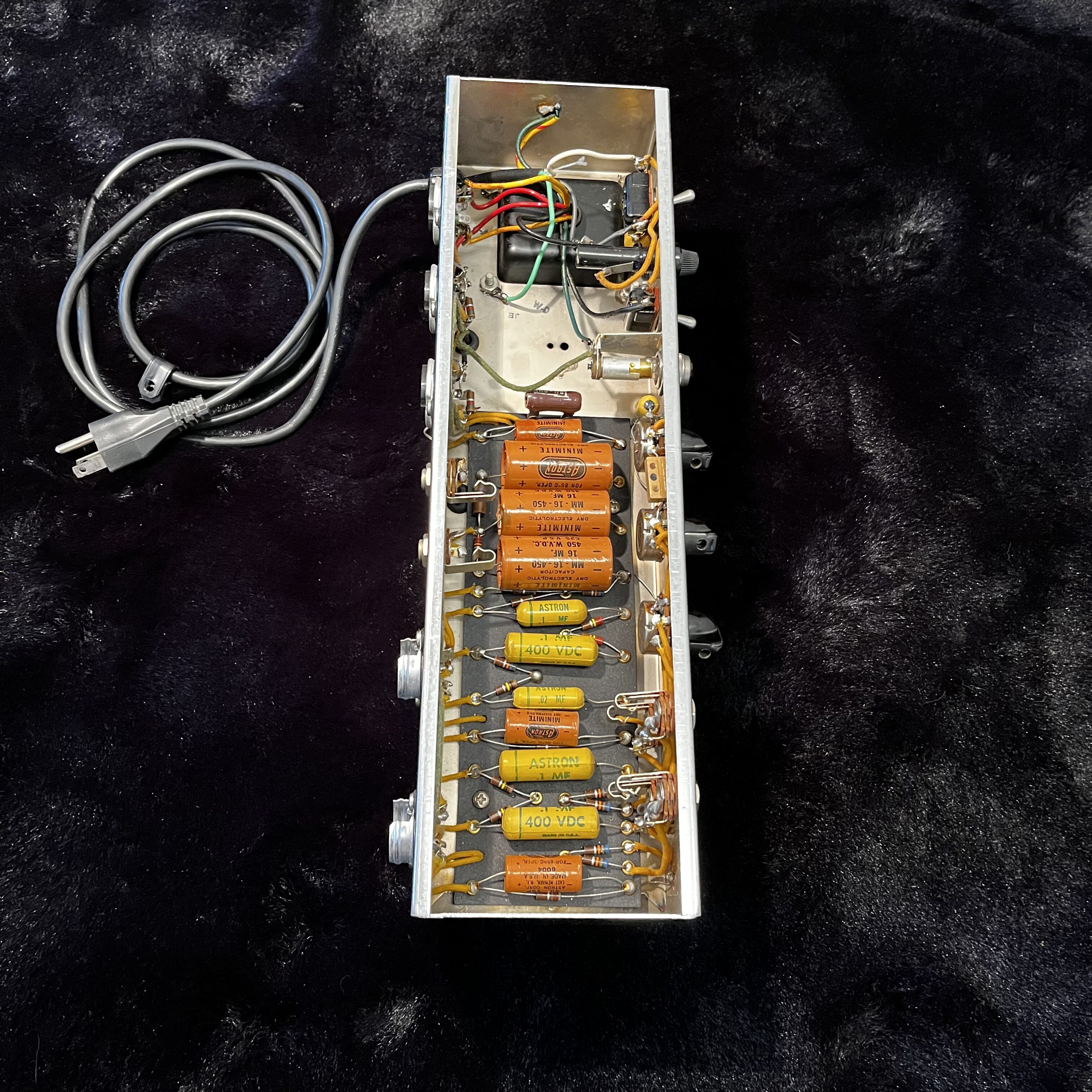

It has been serviced with some new quality filter capacitor and resistors so it can run perfectly.

This amp, when used solely with a guitar it instantly achieves what is known as the “Tweed Sound”

Specs:

  • Modell: 5E3
  • Chrome panel
  • Original circuit

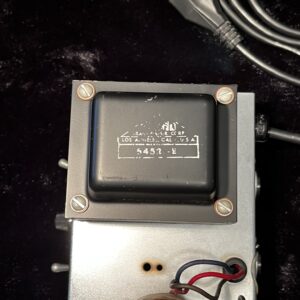

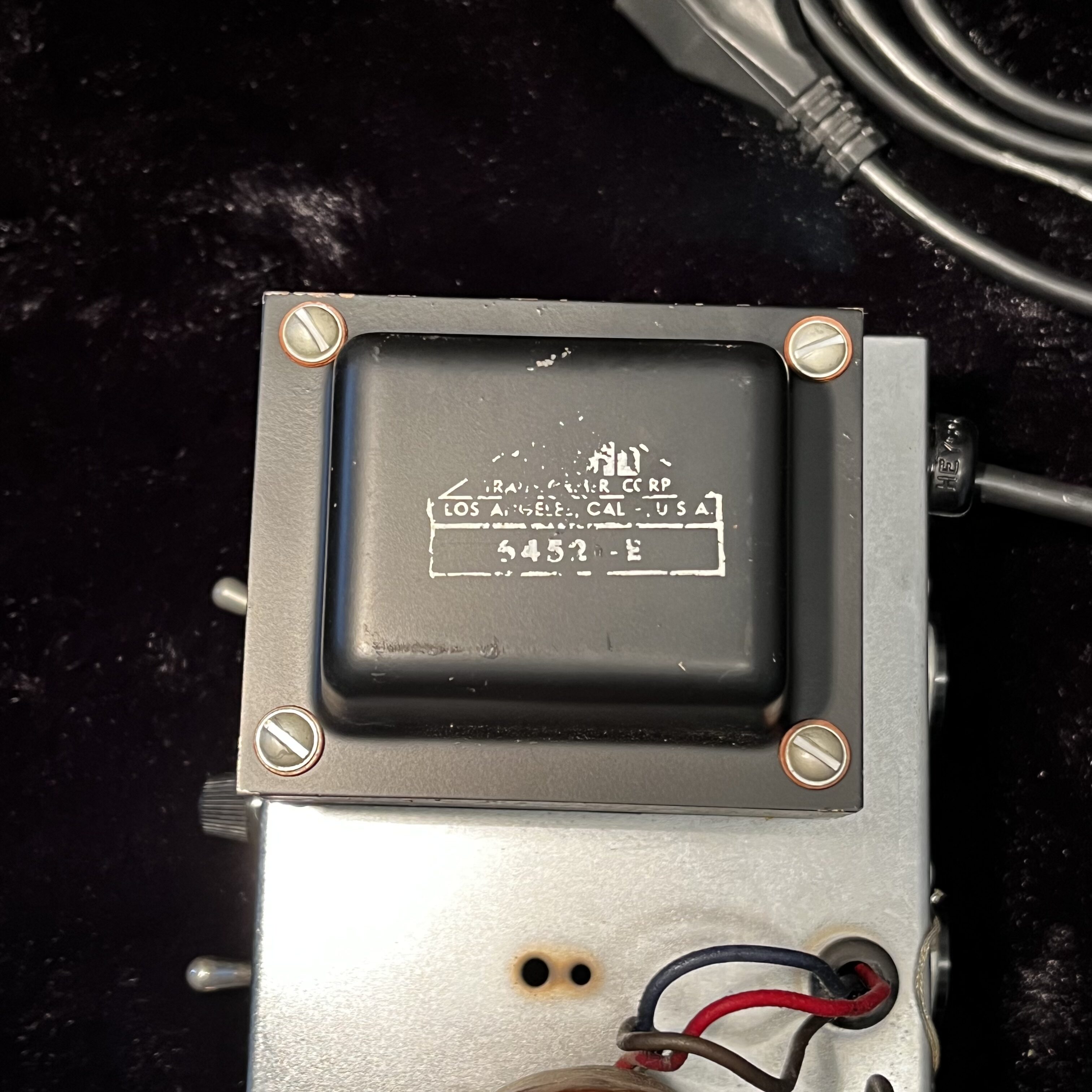

  • Power Transformer: Triad 6452-E

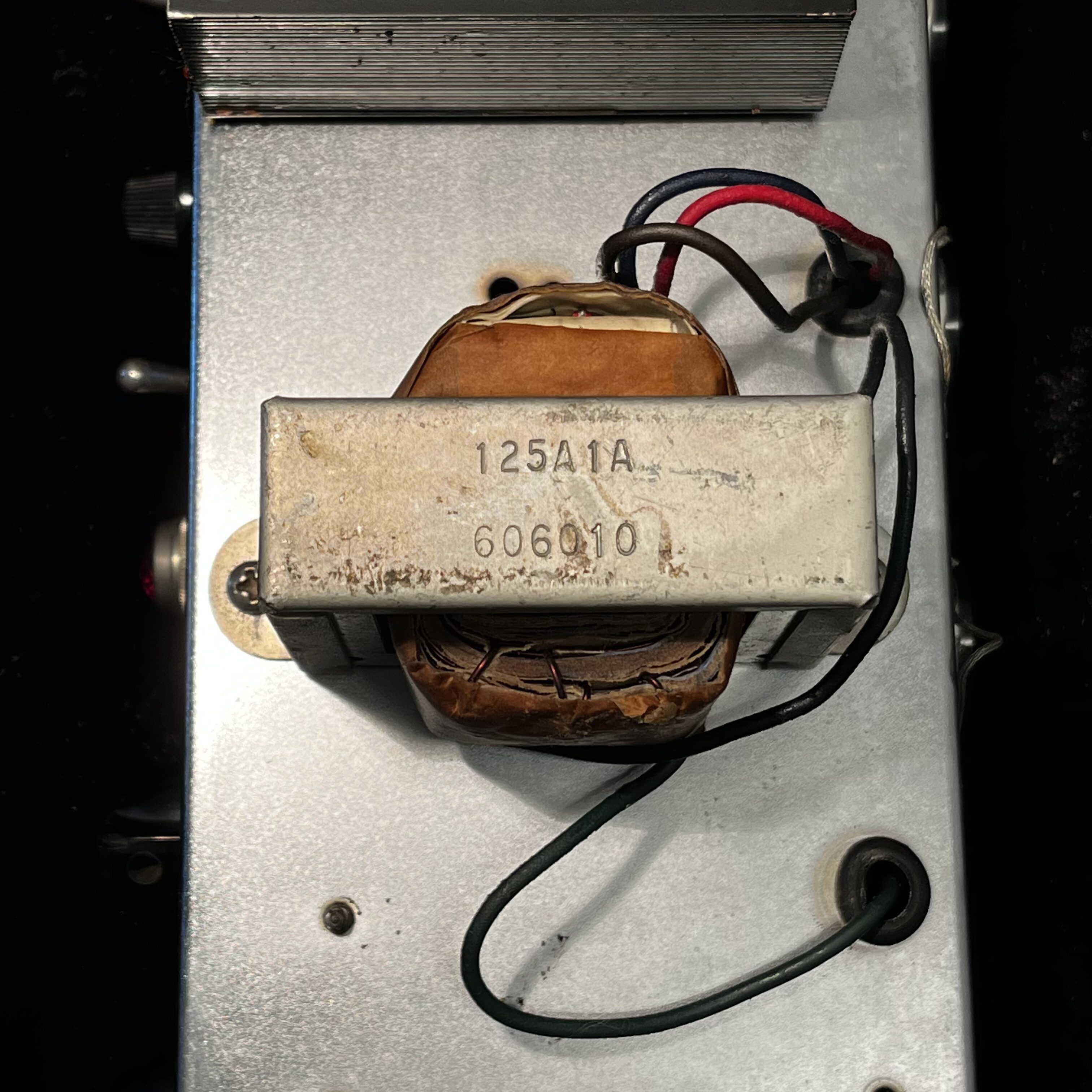

  • Output Transformer: 125A1A – 606010

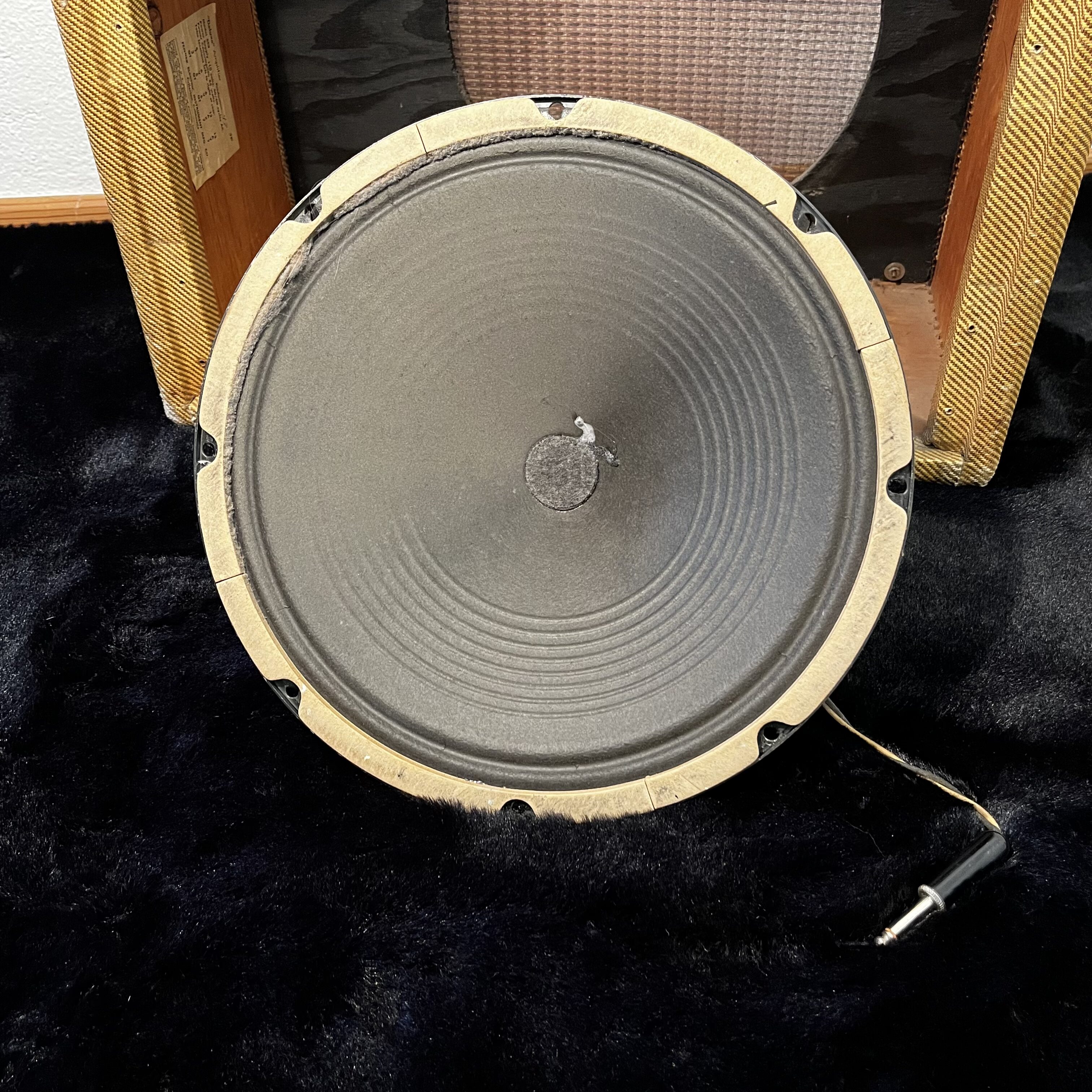

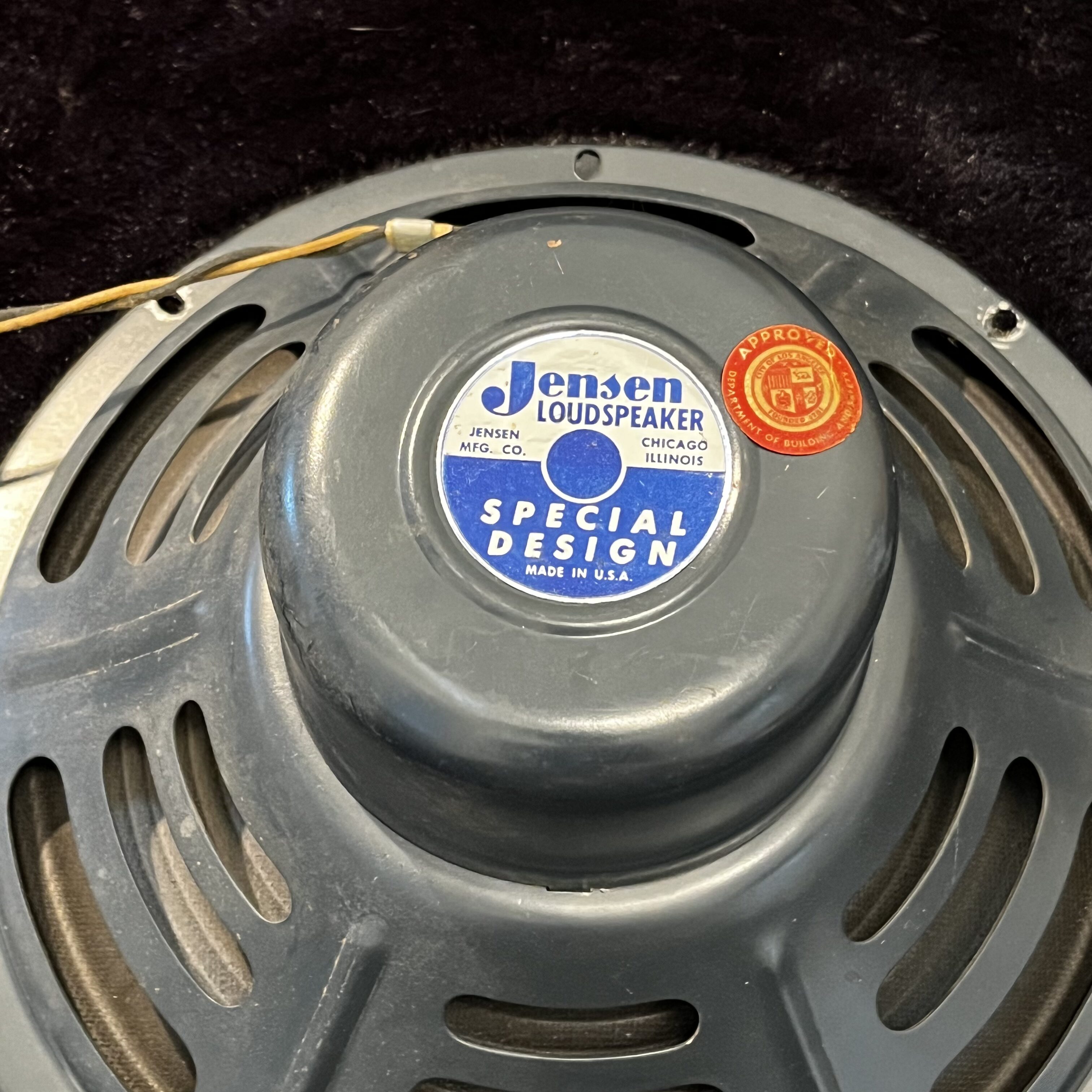

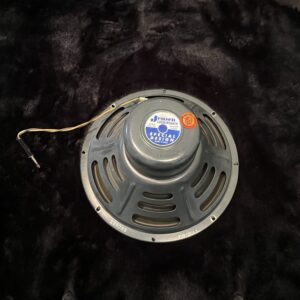

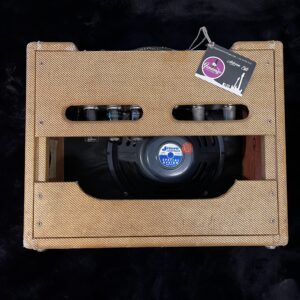

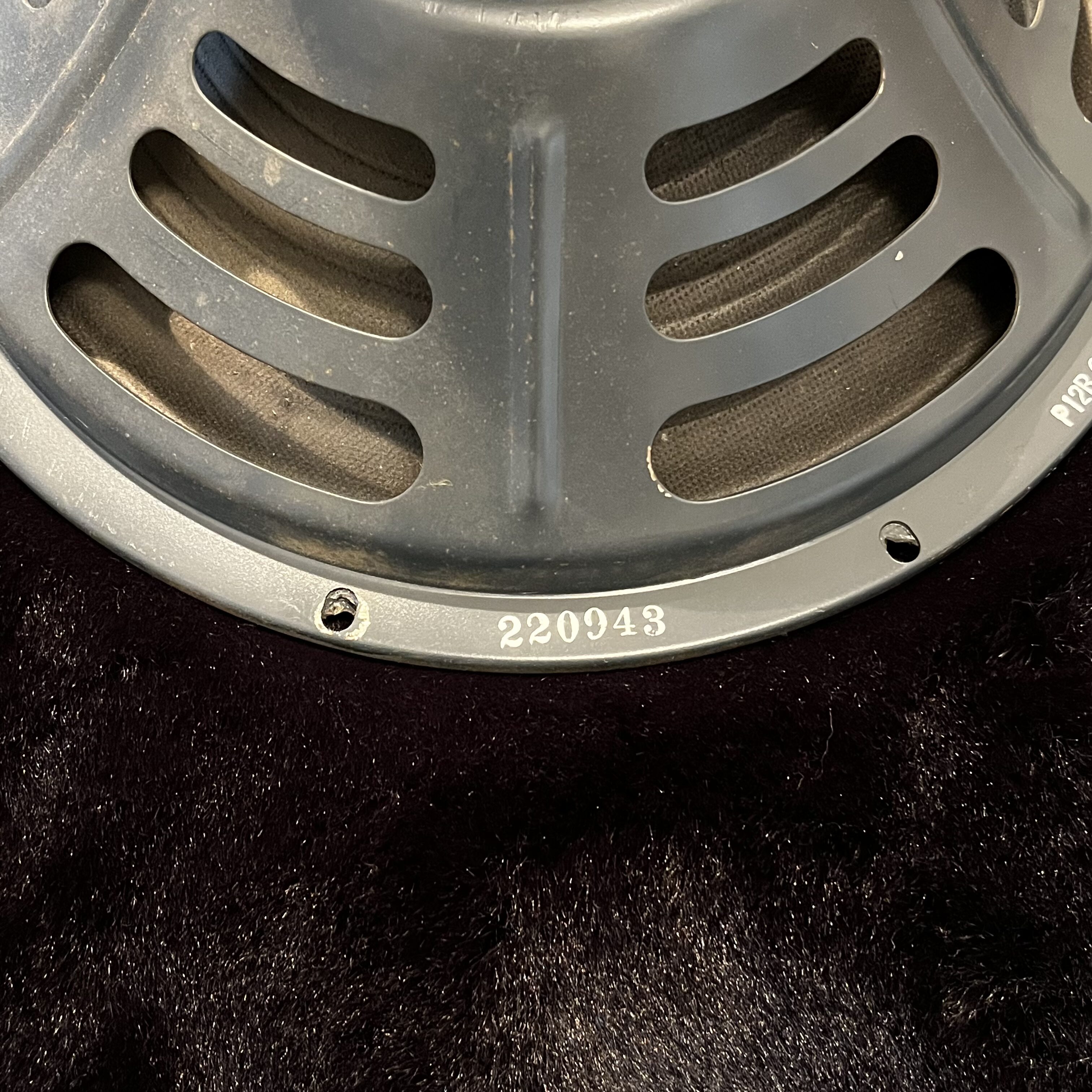

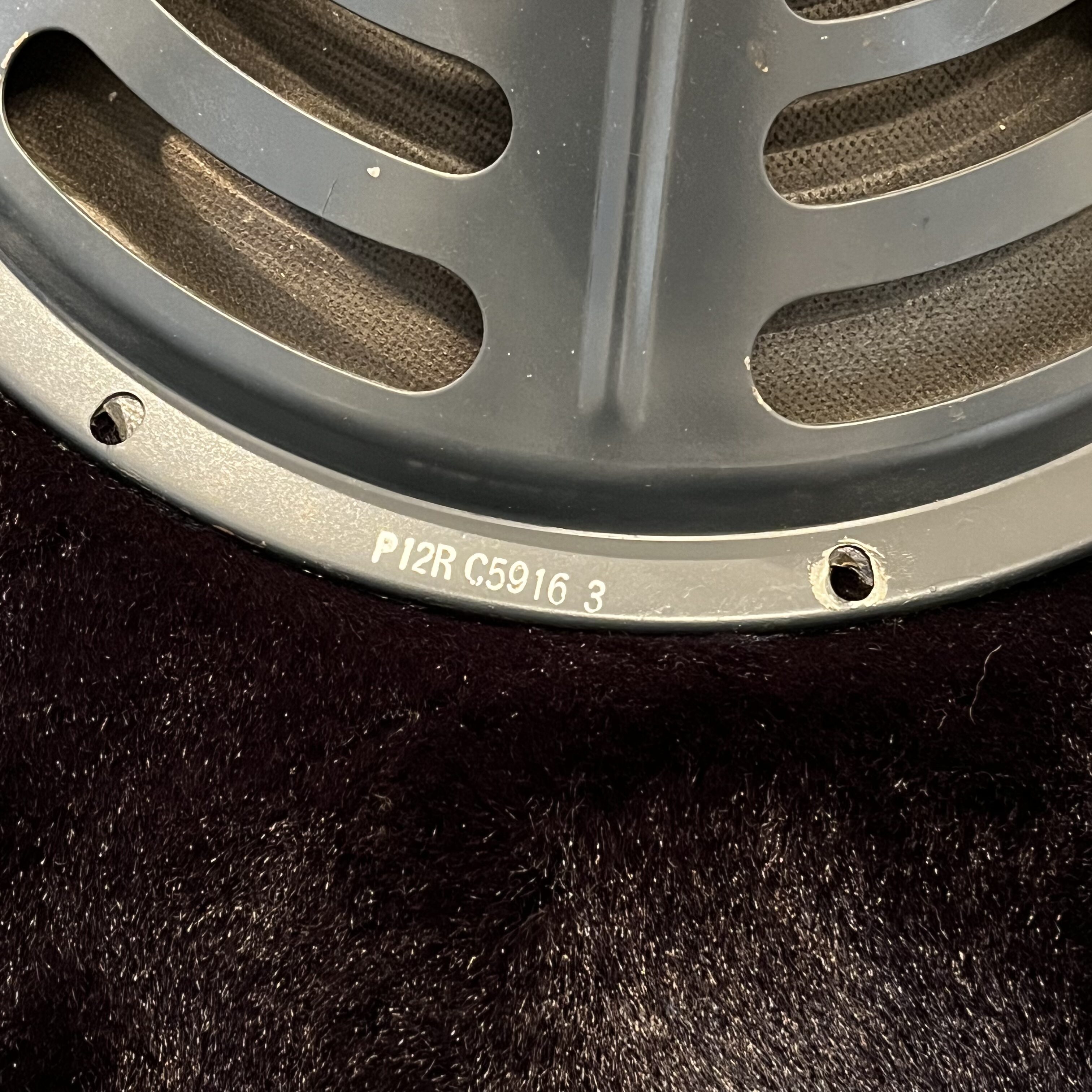

  • Original 12″ Jensen P12RC5916 3 speaker / Data code = 220943 = 43th week of 1959 = October 19th to 25th

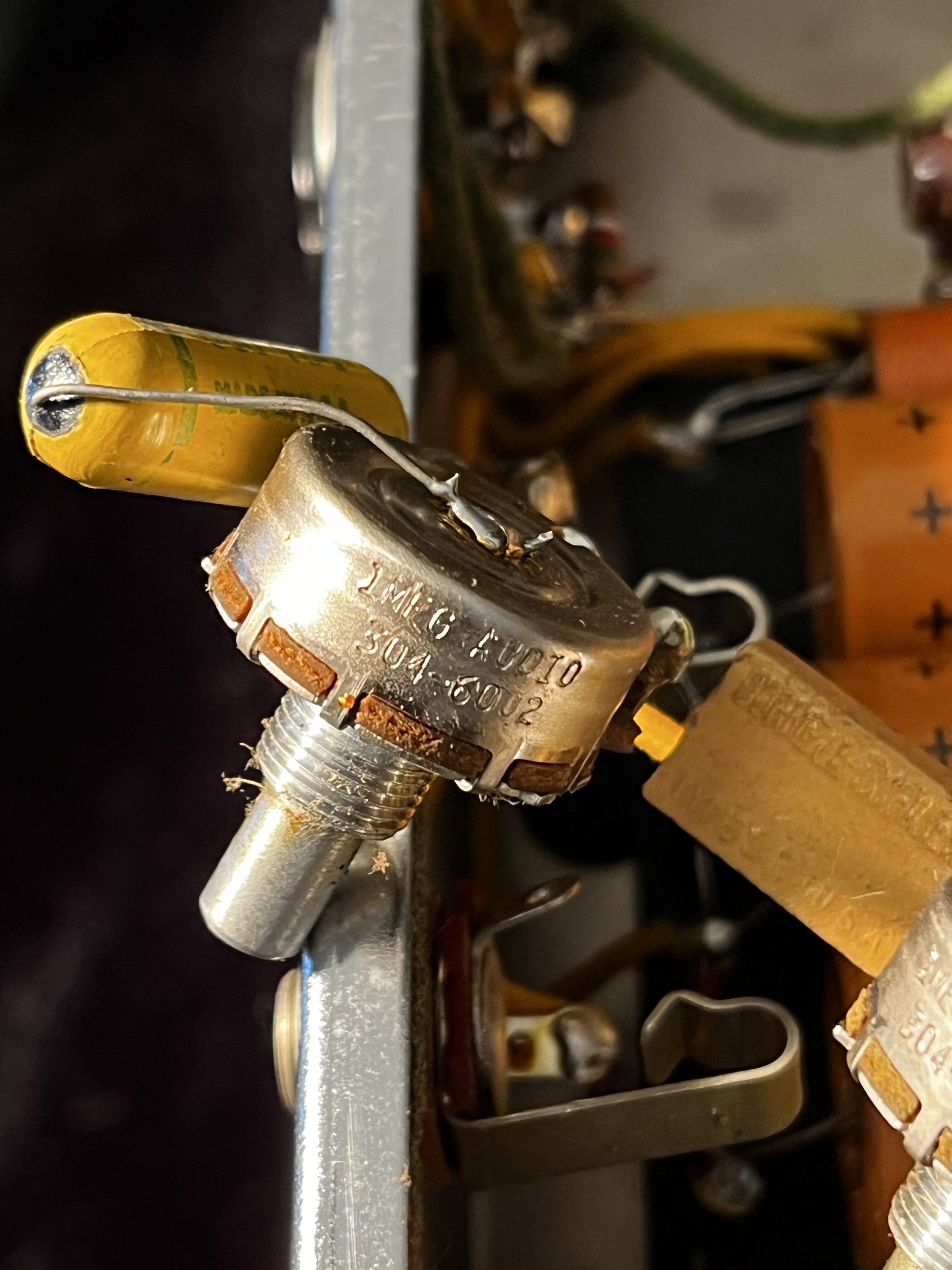

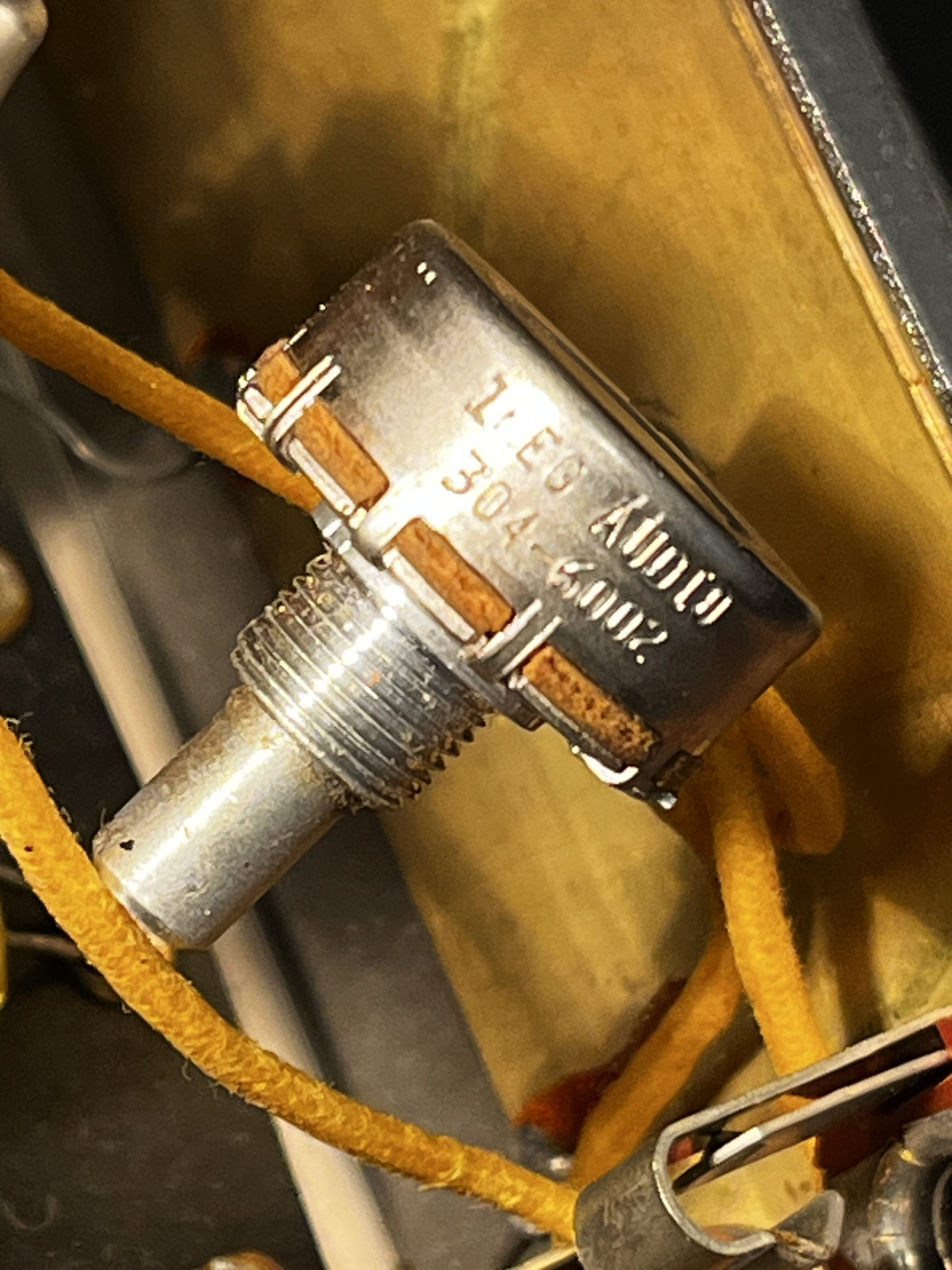

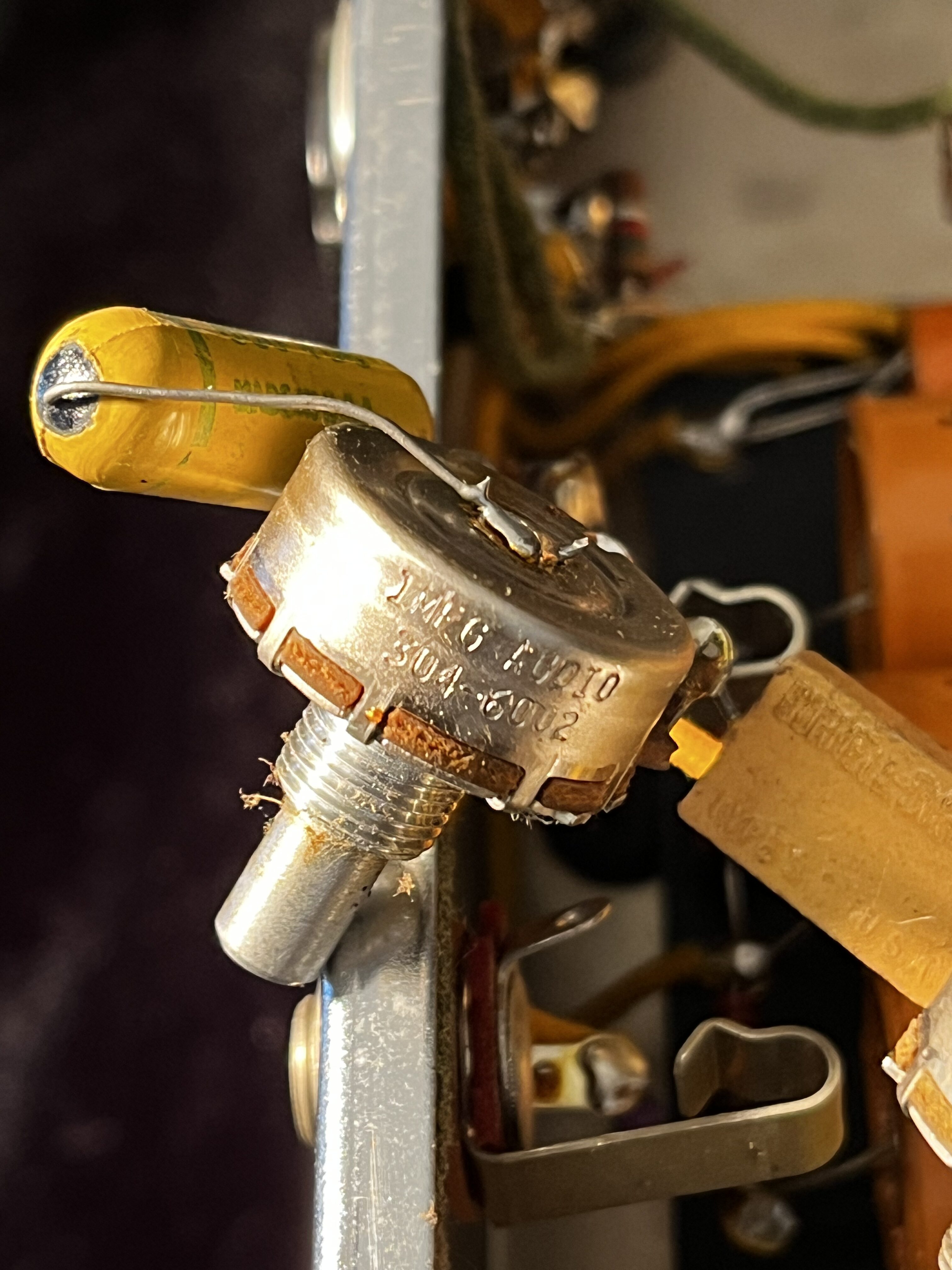

  • Potentiometers, all 3 are: 304-6002 = Stackpole – 2nd week of 1960 = January 10th to 16th
  • TubeChart: JE = May-1960

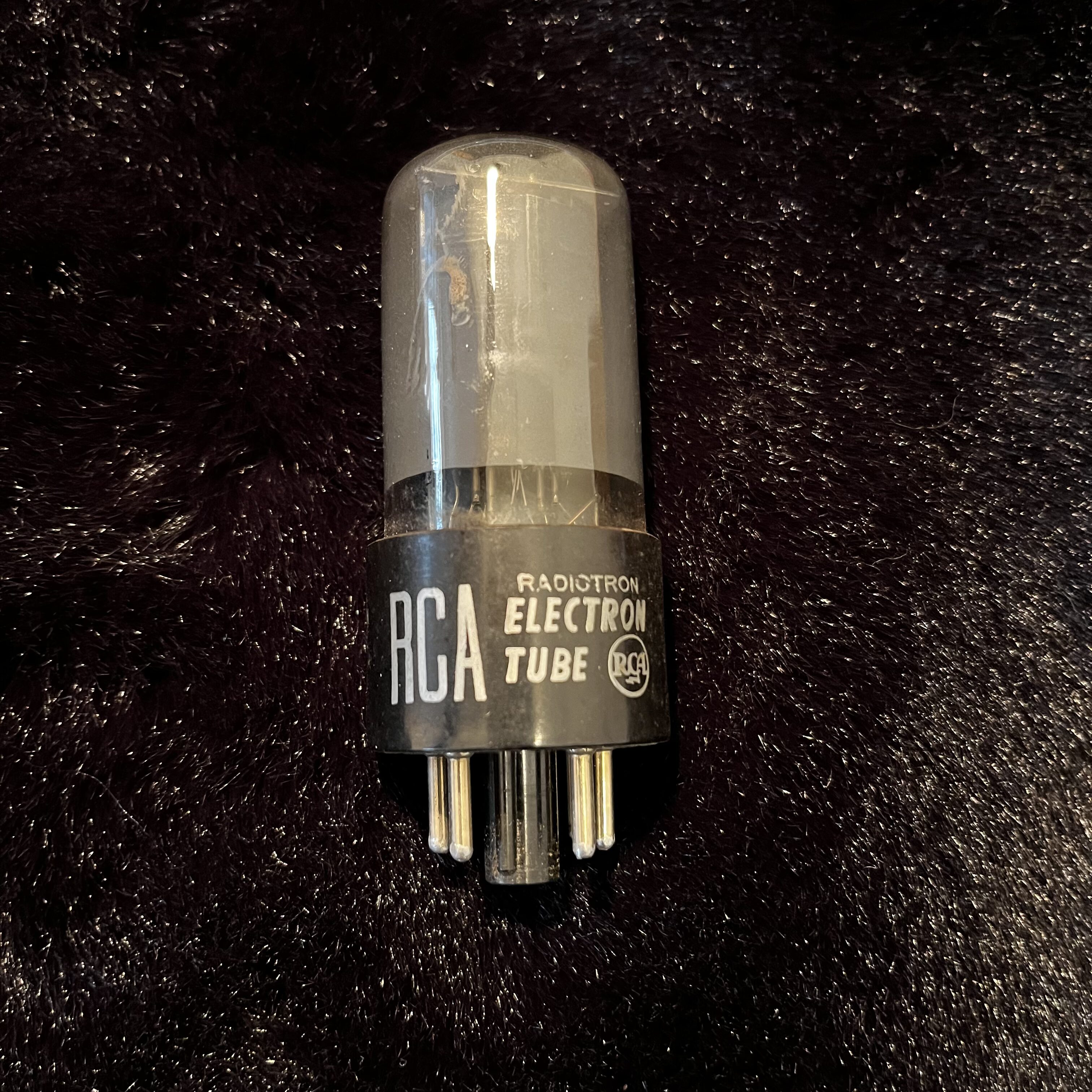

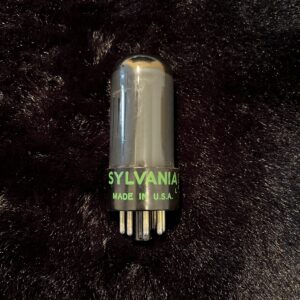

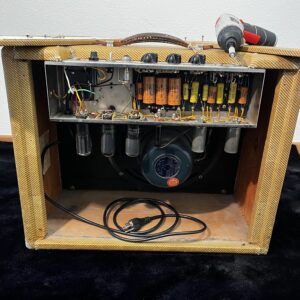

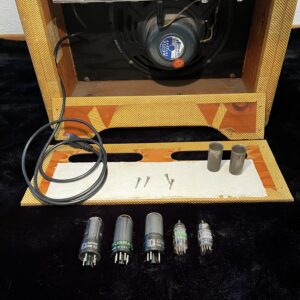

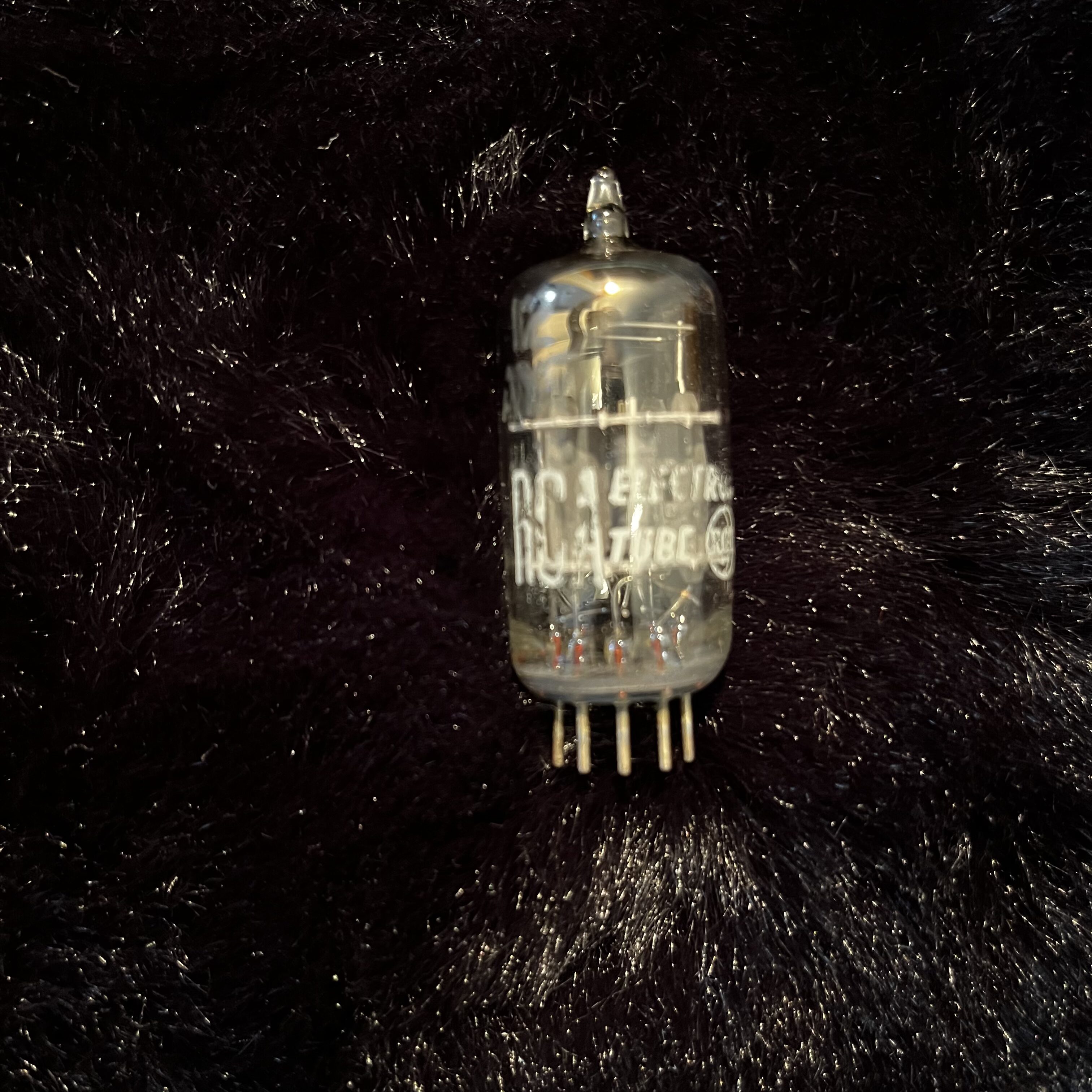

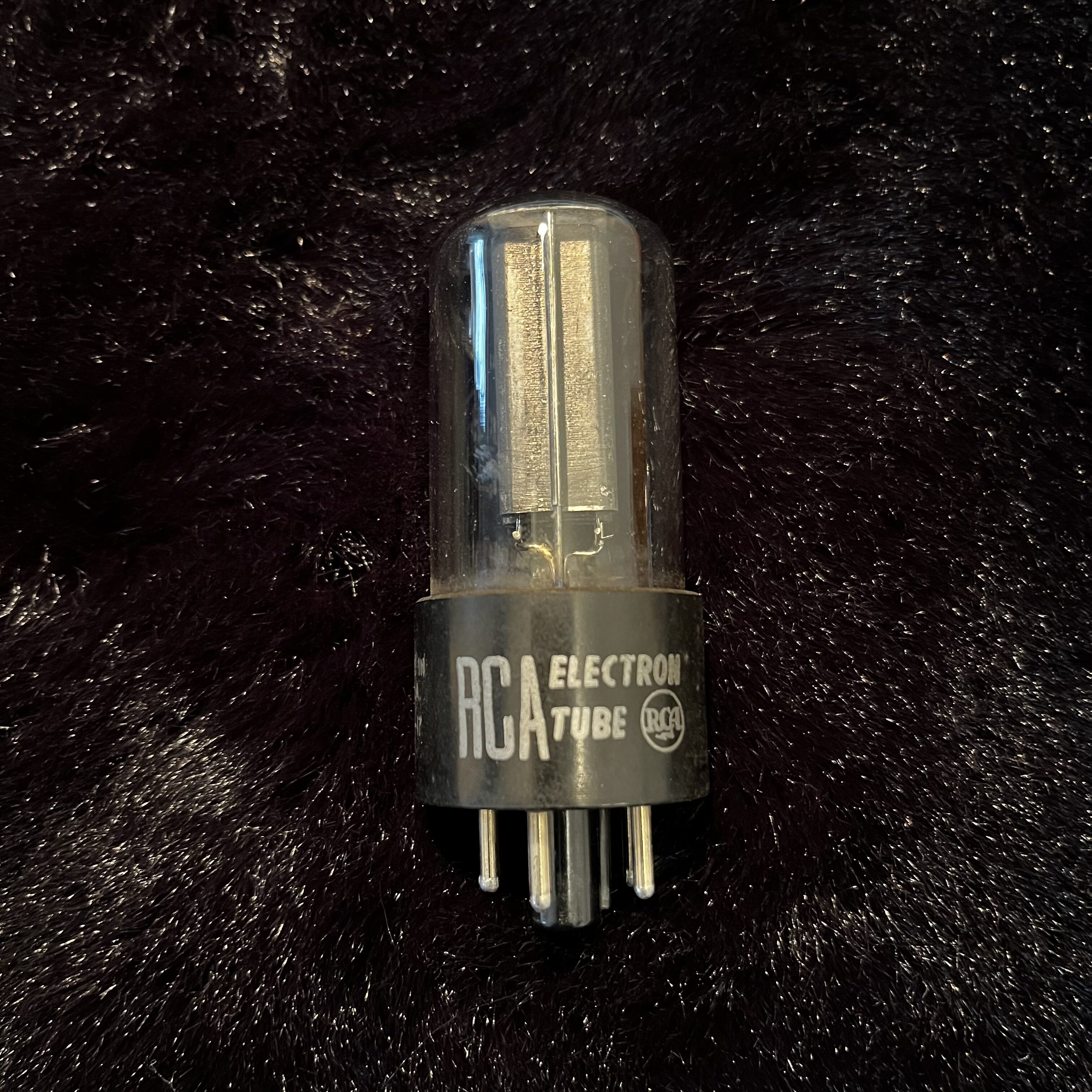

  • Tube layout – from left to right – see pics: 5Y3GT (RCA) + 6V6GT (Sylvania) + 6V6 (RCA)  12AX7 (Sylvania) + 12AY7 (RCA)

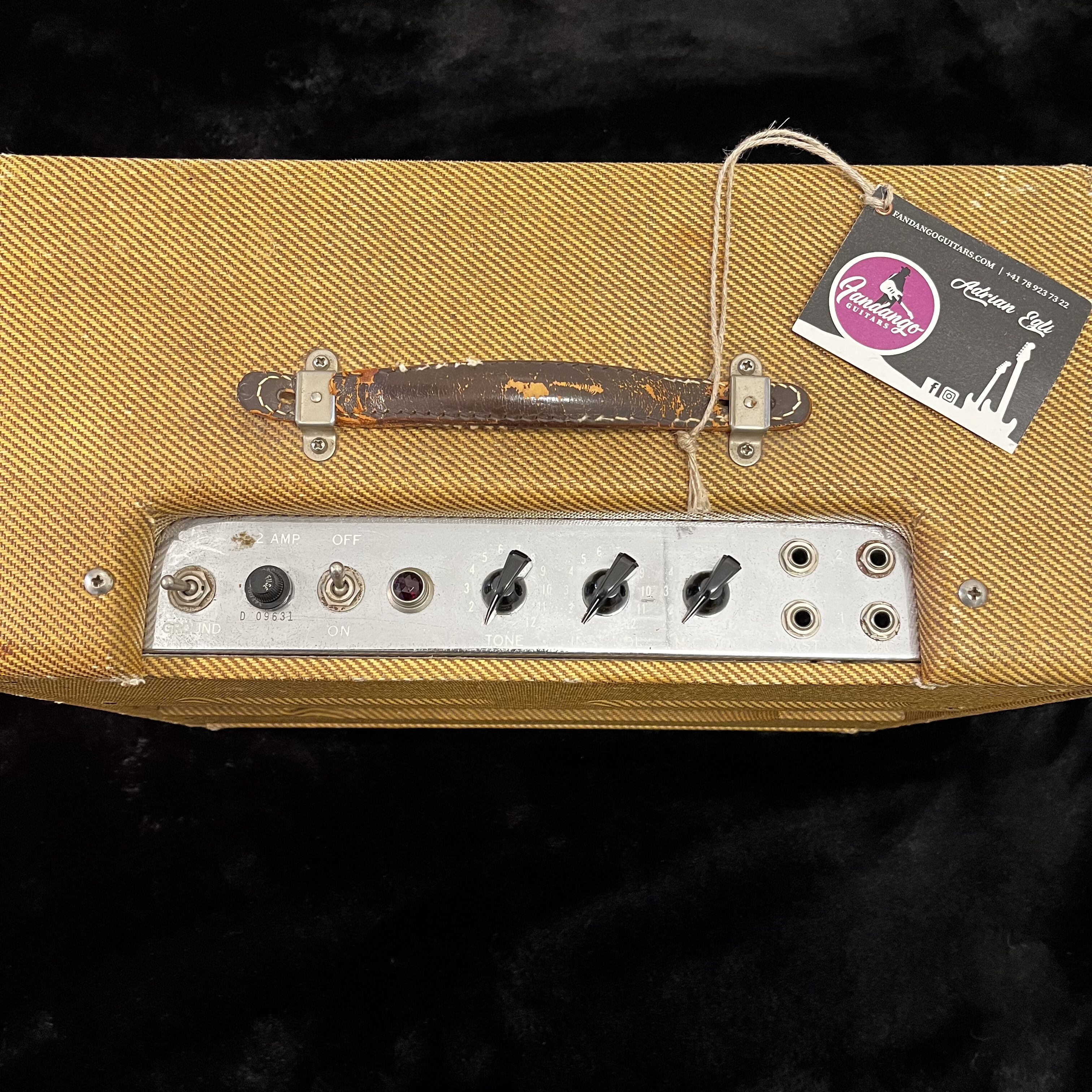

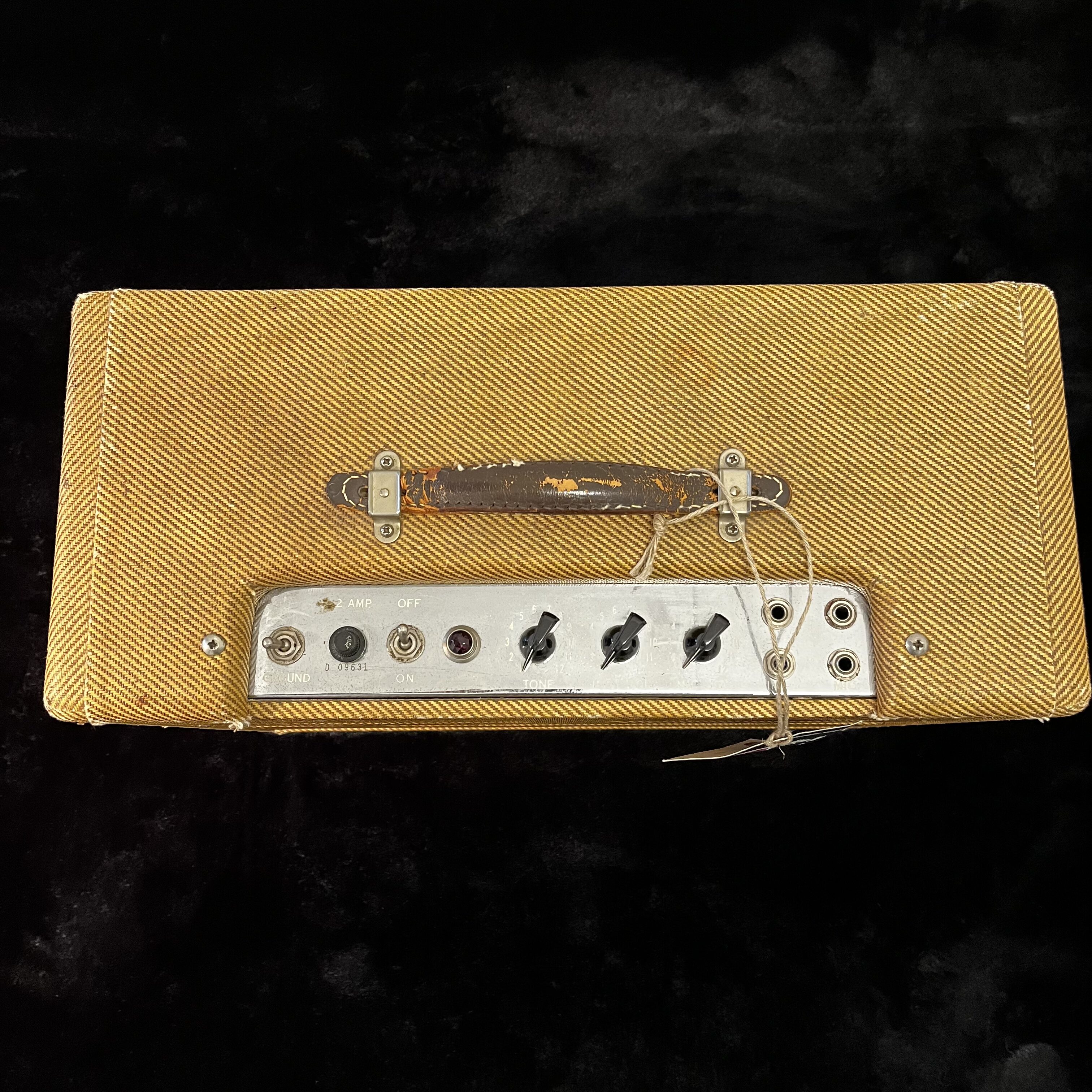

  • Inputs: 2 x Inst. / 2 x Mic.
  • Controls: 1 x Inst.Volume + 1 x Mic. Volume / 1 x Tone

* Manufacturing date codes and interior pics are available per request: e-mail

Weight 15 kg
Dimensions 50 × 40 × 25 cm
